Baumer
IR12.D04S-F50.UA1Z.7BO
Inductive Distance Sensor, M12, Flush, 12-36VDC, 0-4mm Measuring Distance Sd, Analog 0-10VDC Output, M12 Connector, 12 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$330.09
IR12.D04S-F50.IA1Z.7BO
Alt: 11226697
$330.09
Inductive Distance Sensor, M12, Flush, 8-36VDC, 0-4mm Measuring Distance Sd, Analog 4-20mA Output, M12 Connector, 12 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

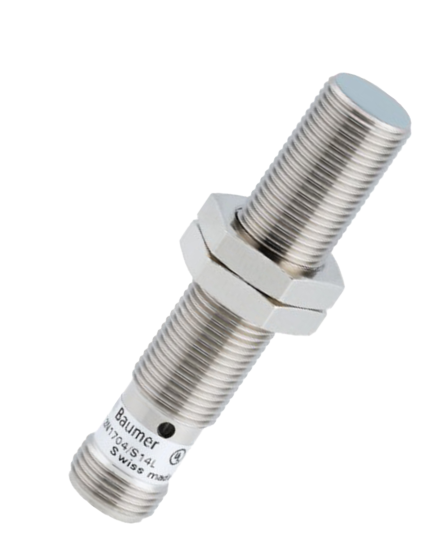

The Baumer IR12 inductive distance sensor measures the distance to a metal target without contact and provides an analog output.
Key Features
- Non-contact distance measurement of metal targets
- Measuring distance 0-4 mm, 0-6 mm or 2.75-3 mm depending on model
- Flush or quasi-flush mounting depending on model
- Analog 0-10 VDC output depending on model
- Analog 4-20 mA output depending on model
- Supply voltage 12-30 VDC, 12-36 VDC, 8-30 VDC or 8-36 VDC depending on model
- Connection via 2 m cable or M12 connector depending on model
- Cylindrical threaded housing in nickel plated brass; cylindrical threaded housing in nickel plated steel depending on model
- Operating temperature -10 to +60 °C or -25 to +75 °C depending on model
- Protection class IP67
