U500.PA0.2-GP1J.72F
7 available from manufacturer (as of 10/28/2026)
Baumer

U500.PA0.2-GP1J.72F

Alt: 11200632

$426.80

Ultrasonic Proximity Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, Push-Pull, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

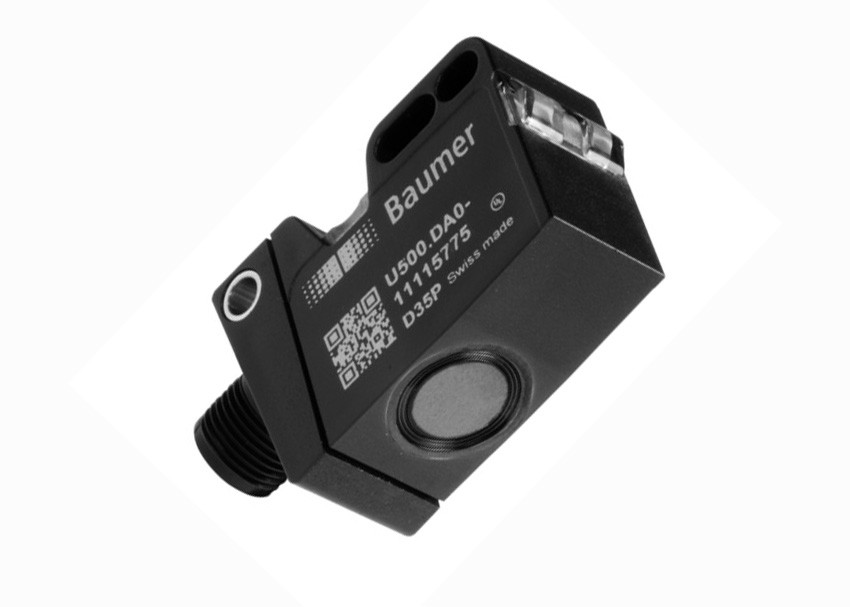

Baumer U500 ultrasonic proximity sensor for non-contact object detection
Description

The Baumer U500 ultrasonic proximity sensor detects objects within its scanning range using ultrasound and switches an output.

Key Features

  • Scanning range 100-1000 mm or 20-1000 mm depending on model
  • Adjustment via qTeach, line-teach or IO-Link depending on model
  • Push-pull switching output
  • IO-Link depending on model
  • Supply voltage 12-30 VDC
  • Connection via 2 m PUR cable or M12 5-pin connector depending on model
  • 18 x 45 x 32 mm rectangular housing in plastic (ASA, PMMA)
  • Operating temperature -25 to +65 °C
  • Protection class IP67

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

U500.RA0.2-GP1J.72F

Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, Push-Pull, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$426.80

Baumer

U500.PA0.2-GP2J.72F

Ultrasonic 2-Point Proximity Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, Push-Pull, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$426.80

Baumer

UR18.PA0.2-GP1J.9SF

Ultrasonic Proximity Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, Push-Pull, M12 5-Pin Connector, M18 x 64mm Cylindrical Threaded, Stainless Steel (V2A)/TR90 Housing, -25 to +65°C, IP69

$426.80

Baumer

U500.DA0.2-UAMJ.72F

Ultrasonic Distance Measuring Sensor, 12-30VDC, 20-1000mm Scanning Range Sd, qTeach, Line-Teach, IO-Link, 0-10V Voltage Output, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$496.09

Baumer

U500.TB0.2-ZZZZ.72F

Ultrasonic Thru-Beam Sensor, Emitter, 12-30VDC, 0-2000mm Scanning Range Sd, M12 5-Pin Connector, 18 x 45 x 32mm Rectangular, Plastic (ASA, PMMA) Housing, -25 to +65°C, IP67

$268.09
