Baumer
IR18.P08S-F50.PV1Z.7BCV
Inductive Proximity Sensor, M18, Flush, 6-36VDC, 8mm Range Sn, PNP, NO/NC Complementary, 2m Cable, 18 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$120.40
IR18.P08S-F60.PV1Z.7BO
Alt: 11184278
$112.49
Inductive Proximity Sensor, M18, Flush, 6-36VDC, 8mm Range Sn, PNP, NO/NC Complementary, M12 Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

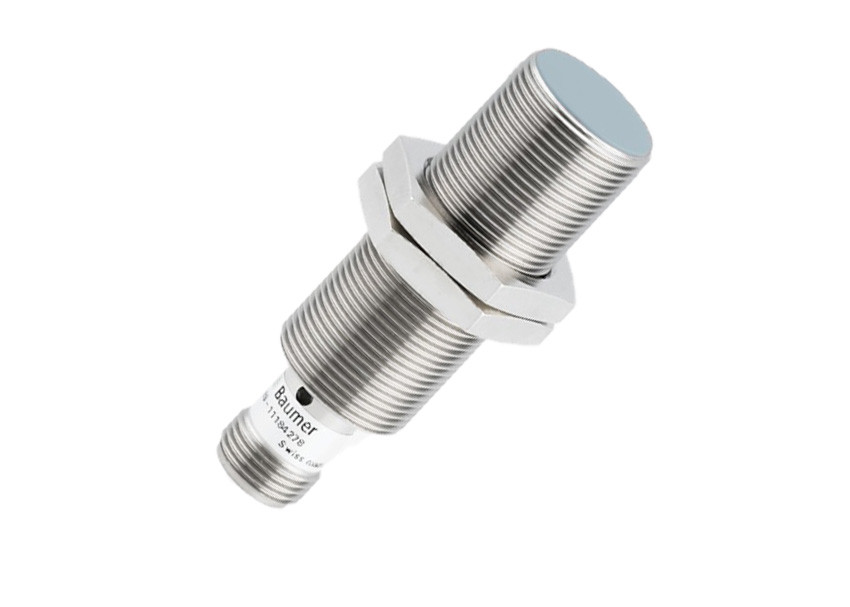

The Baumer IR18 inductive proximity switch is a cylindrical sensor with complementary NO/NC outputs for non-contact detection of metal objects.
Key Features
- Complementary output (NO/NC)
- Nominal sensing distance 8 mm
- Flush mounting
- PNP switching output, NO/NC Complementary
- Supply voltage 6-36 VDC
- Connection via 2 m cable or M12 connector depending on model
- Cylindrical threaded housing in nickel plated brass
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IR18.P06F-F60.NC1Z.7BO
Inductive Proximity Sensor, M18, Flush, 5-36VDC, 6mm Range Sn, NPN, NC, Factor 1 All Metals, M12 4-Pin Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$91.09
Baumer
IR30.P18S-F60.PV1Z.7BO
Inductive Proximity Sensor, M30, Flush, 6-36VDC, 18mm Range Sn, PNP, NO/NC Complementary, Enhanced Distance (GammaProx), M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$141.69
Baumer
IR18.P06F-F60.NO1Z.7BO
Inductive Proximity Sensor, M18, Flush, 5-36VDC, 6mm Range Sn, NPN, NO, Factor 1 All Metals, M12 4-Pin Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$91.09
Baumer
IR18.P12S-F60.PO1Z.7BO
Inductive Proximity Sensor, M18, Flush, 6-36VDC, 12mm Range Sn, PNP, NO, Enhanced Distance (GammaProx), M12 Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$131.20
