IR30.D24L-N60.UA1E.7BO
Baumer

IR30.D24L-N60.UA1E.7BO

Alt: 11179050

$542.09

Inductive Distance Sensor, M30, Non-Flush, 12-36VDC, 0-24mm Measuring Distance Sd, Analog 0-10VDC Output, Linearized, M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

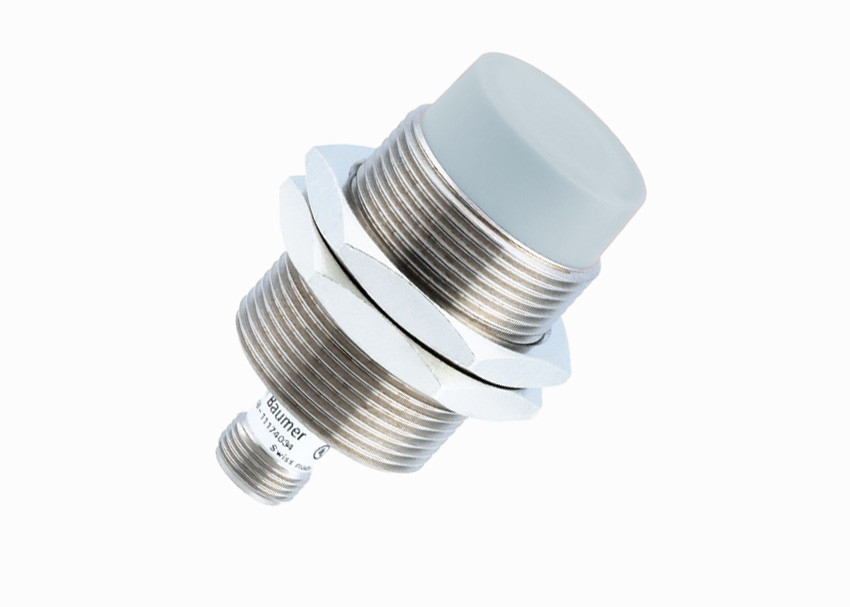

Baumer IR30 inductive distance sensor with analog output
Description

The Baumer IR30 inductive distance sensor measures the distance to a metal target without contact and provides an analog output.

Key Features

  • Non-contact distance measurement of metal targets
  • Measuring distance 0-18 mm or 0-24 mm depending on model
  • Flush or non-flush mounting depending on model
  • Analog 0-10 VDC output depending on model
  • Analog 4-20 mA output depending on model
  • Supply voltage 12-36 VDC or 8-36 VDC depending on model
  • Connection via M12 connector
  • Cylindrical threaded housing in nickel plated brass
  • Operating temperature -25 to +75 °C
  • Protection class IP67

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

IR30.D24L-N60.IA1E.7BO

Inductive Distance Sensor, M30, Non-Flush, 8-36VDC, 0-24mm Measuring Distance Sd, Analog 4-20mA Output, Linearized, M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

$542.09

Baumer

IR30.D24S-N60.UA1Z.7BO

Inductive Distance Sensor, M30, Non-Flush, 12-36VDC, 0-24mm Measuring Distance Sd, Analog 0-10VDC Output, M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

$453.89

Baumer

IR30.D18L-F60.UA1E.7BO

Inductive Distance Sensor, M30, Flush, 12-36VDC, 0-18mm Measuring Distance Sd, Analog 0-10VDC Output, Linearized, M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

$542.09

Baumer

IR30.P24S-N60.PV1Z.7BO

Inductive Proximity Sensor, M30, Non-Flush, 6-36VDC, 24mm Range Sn, PNP, NO/NC Complementary, Enhanced Distance (GammaProx), M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

$150.09

Baumer

IR30.P24S-N60.NV1Z.7BO

Inductive Proximity Sensor, M30, Non-Flush, 6-36VDC, 24mm Range Sn, NPN, NO/NC Complementary, Enhanced Distance (GammaProx), M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67

$150.09
