IR12V.P04S-F55.NO1Z.9BDU/0035_E011
Baumer

IR12V.P04S-F55.NO1Z.9BDU/0035_E011

Alt: 11177636

$138.20

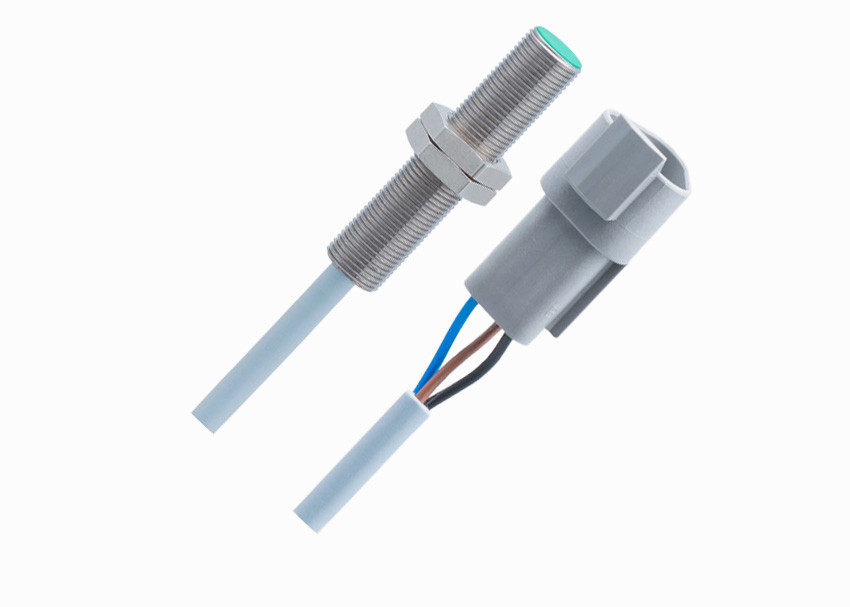

Inductive Proximity Sensor, M12, Flush, 7-48VDC, 4mm Range Sn, NPN, NO, Vehicle Design, DT04-3P Flylead Connector, 12 x 55mm Cylindrical Threaded Nickel Plated Brass Housing, -40 to +85°C, IP68

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Baumer IR12 vehicle-design inductive proximity sensor for reliability
Description

The Baumer IR12 vehicle-design inductive proximity switch is designed for reliability, with a vehicle-design housing and IP68/IP69K protection.

Key Features

  • Vehicle design
  • IP68/IP69K protection
  • Nominal sensing distance 4 mm
  • Flush mounting
  • NPN or PNP switching output, NO depending on model
  • Supply voltage 7-48 VDC
  • Connection via 2 m cable or DT04-3P flylead connector depending on model
  • Cylindrical threaded housing in nickel plated brass
  • Operating temperature -40 to +85 °C
  • Protection class IP68

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

IR12V.P04S-F55.PO1Z.9BDU/0035_E011

Inductive Proximity Sensor, M12, Flush, 7-48VDC, 4mm Range Sn, PNP, NO, Vehicle Design, DT04-3P Flylead Connector, 12 x 55mm Cylindrical Threaded Nickel Plated Brass Housing, -40 to +85°C, IP68

$138.20

Baumer

IR18V.P08S-F50.NO1Z.9BDU/0035_E011

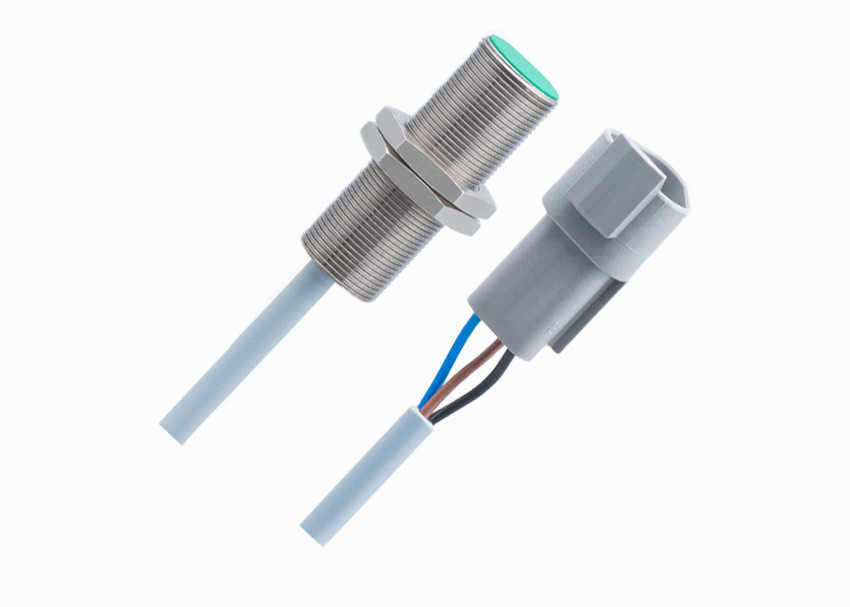

Inductive Proximity Sensor, M18, Flush, 7-48VDC, 8mm Range Sn, NPN, NO, Vehicle Design, DT04-3P Flylead Connector, 18 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -40 to +85°C, IP68

$159.60

Baumer

IR12V.P04S-F55.NO1Z.9BCU/E011

Inductive Proximity Sensor, M12, Flush, 7-48VDC, 4mm Range Sn, NPN, NO, Vehicle Design, 2m Cable, 12 x 55mm Cylindrical Threaded Nickel Plated Brass Housing, -40 to +85°C, IP68

$138.20

Baumer

IR18V.P08S-F50.PO1Z.9BDU/0035_E011

Inductive Proximity Sensor, M18, Flush, 7-48VDC, 8mm Range Sn, PNP, NO, Vehicle Design, DT04-3P Flylead Connector, 18 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -40 to +85°C, IP68

$159.60
