IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010
Baumer

IR18V.D08L-F50.UA1Z.9BDU/0035_A002_E010

Alt: 11176397

$423.89

Inductive Distance Sensor, M18, Flush, 4.75-5.25VDC, 0-8mm Measuring Distance Sd, Analog 0.5-4.5VDC Output, Linearized, DT04-3P Flylead Connector, 18 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -40 to +85°C, IP68

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

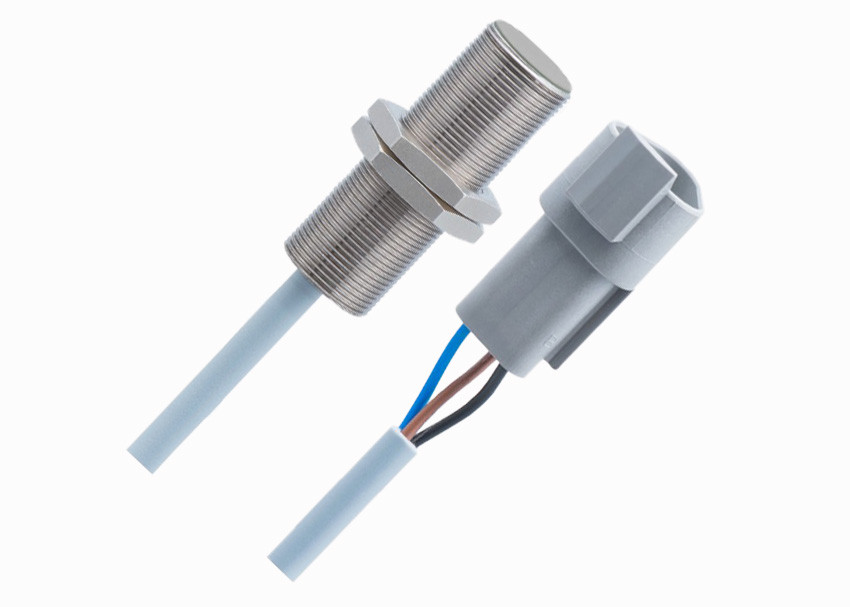

Baumer IR18 inductive distance sensor with analog output
Description

The Baumer IR18 inductive distance sensor measures the distance to a metal target without contact and provides an analog output.

Key Features

  • Non-contact distance measurement of metal targets
  • Measuring distance 0-8 mm, 2-5 mm or 2.75-3 mm depending on model
  • Flush or quasi-flush mounting depending on model
  • Analog 0-10 VDC output depending on model
  • Analog 0.5-4.5 VDC output depending on model
  • Analog 1-9 VDC output depending on model
  • Analog 4-20 mA output depending on model
  • Supply voltage 12-30 VDC, 12-36 VDC, 4.75-5.25 VDC or 7-32 VDC depending on model
  • Connection via 2 m cable, DT04-3P flylead connector or M12 connector depending on model
  • Cylindrical threaded housing in nickel plated brass; cylindrical threaded housing in nickel plated steel depending on model
  • Operating temperature -10 to +60 °C, -10 to +70 °C, -25 to +75 °C or -40 to +85 °C depending on model
  • Protection class IP67 or IP68 depending on model
