$615.20
IR12.D03K-F60.IA1E.7FO/B015
Alt: 11158152
$615.20

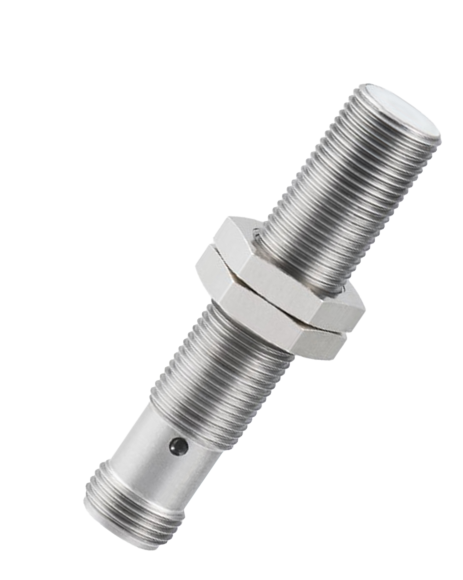

Inductive Distance Sensor, M12, Flush, 8-30VDC, 2.75-3mm Measuring Distance Sd, Analog 4-20mA Output, Linearized, M12 Connector, 12 x 60mm Cylindrical Threaded Nickel Plated Steel Housing, -10 to +60°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer IR12 inductive distance sensor measures the distance to a metal target without contact and provides an analog output.
Key Features
- Non-contact distance measurement of metal targets
- Measuring distance 0-4 mm, 0-6 mm or 2.75-3 mm depending on model
- Flush or quasi-flush mounting depending on model
- Analog 0-10 VDC output depending on model
- Analog 4-20 mA output depending on model
- Supply voltage 12-30 VDC, 12-36 VDC, 8-30 VDC or 8-36 VDC depending on model
- Connection via 2 m cable or M12 connector depending on model
- Cylindrical threaded housing in nickel plated brass; cylindrical threaded housing in nickel plated steel depending on model
- Operating temperature -10 to +60 °C or -25 to +75 °C depending on model
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IR12.D03K-F60.UA1E.7FO/B015
Inductive Distance Sensor, M12, Flush, 12-30VDC, 2.75-3mm Measuring Distance Sd, Analog 0-10VDC Output, Linearized, M12 Connector, 12 x 60mm Cylindrical Threaded Nickel Plated Steel Housing, -10 to +60°C, IP67
$615.20
Baumer
IR18.D03K-F60.UA1E.7FO/B015
Inductive Distance Sensor, M18, Flush, 12-30VDC, 2.75-3mm Measuring Distance Sd, Analog 0-10VDC Output, Linearized, M12 Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Steel Housing, -10 to +60°C, IP67
$615.20
$444.49
Baumer
IR30.D18L-F60.IA1E.7BO
Inductive Distance Sensor, M30, Flush, 8-36VDC, 0-18mm Measuring Distance Sd, Analog 4-20mA Output, Linearized, M12 Connector, 30 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$542.09
