Baumer
OR18.ZI-NW1P.71O/B013
Diffuse Reflective Sensor, Pulsed Infrared Diode, 12-30VDC, 0-300mm Sensing Distance Tw, 270° Potentiometer, NPN, Light/Dark Operate, M12 4-Pin Connector, Ø18 x 67.2mm, Plastic, -25 to +55°C, IP67
$64.29
OR18.ZI-NW1P.71O/B005
Alt: 11157801
$64.29
Diffuse Reflective Sensor, Pulsed Infrared Diode, 12-30VDC, 0-800mm Sensing Distance Tw, 270° Potentiometer, NPN, Light/Dark Operate, M12 4-Pin Connector, Ø18 x 67.2mm, Plastic, -25 to +55°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

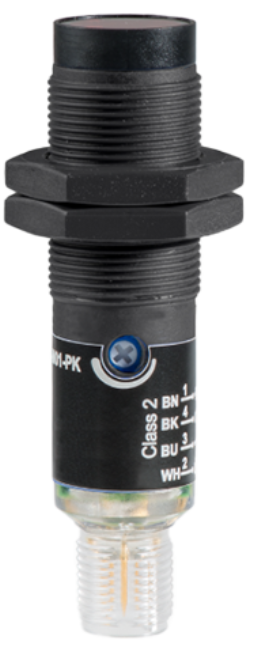

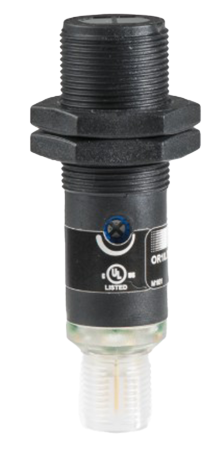

The Baumer OR18 diffuse sensors detect objects by the light reflected directly back from the object surface, so no separate reflector or receiver is needed at the far side of the detection area.
Key Features
- Pulsed infrared diode and pulsed red laser diode light source depending on model
- Laser class 1M on laser models
- Sensing distance Tw up to 800mm depending on model
- 12-30VDC and 10-30VDC supply voltage depending on model
- PNP, NPN complementary, PNP complementary and NPN output versions
- Light/dark operate output function
- Adjustment by 270° potentiometer
- 2m 4-Pin Cable, M12 4-Pin Connector and M12 4-Pin Flylead connection versions
- Plastic, Nickel-Plated Brass and Stainless Steel housing depending on model
- IP67 protection
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
OR18.ZI-PW1P.71O/B005
Diffuse Reflective Sensor, Pulsed Infrared Diode, 12-30VDC, 0-800mm Sensing Distance Tw, 270° Potentiometer, PNP, Light/Dark Operate, M12 4-Pin Connector, Ø18 x 67.2mm, Plastic, -25 to +55°C, IP67
$64.29
$155.60
$71.09
$71.09
