Baumer
IR08.P02F-F40.NC1Z.7SCV
Inductive Proximity Sensor, M8, Flush, 5-36VDC, 2mm Range Sn, NPN, NC, Factor 1 All Metals, 2m Cable, 8 x 40mm Cylindrical Threaded Stainless Steel (V2A) Housing, -25 to +75°C, IP67
$81.80
IR08.P03S-F40.NC1Z.7SCV
Alt: 11148764
$192.49
Inductive Proximity Sensor, Miniature, M8, Flush, 6-36VDC, 3mm Range Sn, NPN, NC, Enhanced Distance (GammaProx), 2m Cable, 8 x 40mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

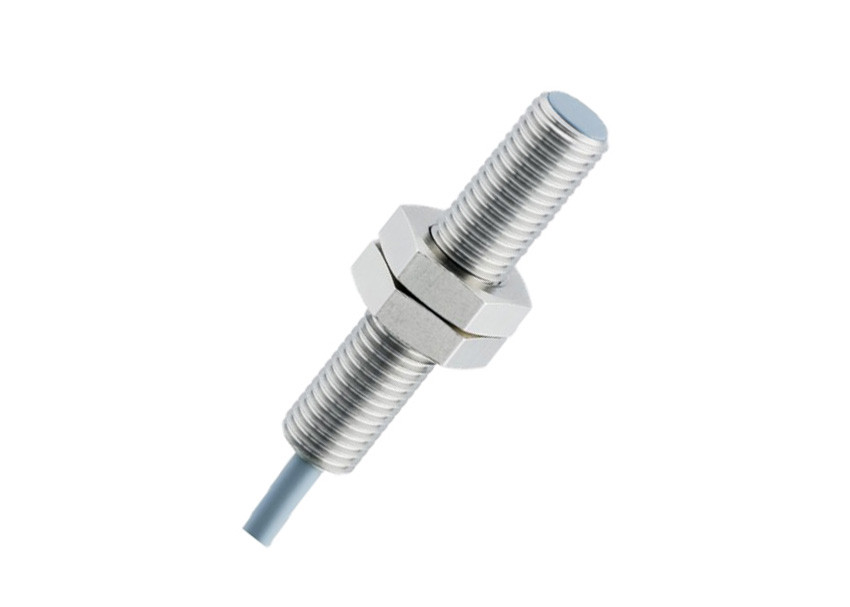

The Baumer IR08 miniature inductive proximity switch offers triple sensing distance (GammaProx) in a compact cylindrical housing.
Key Features
- Miniature housing
- Triple sensing distance (GammaProx)
- Nominal sensing distance 3 mm or 6 mm depending on model
- Flush or non-flush mounting depending on model
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 6-36 VDC
- Connection via 2 m cable or M8 connector depending on model
- Cylindrical threaded housing in stainless steel
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IR08.P03S-F40.PO1Z.7SCV
Inductive Proximity Sensor, Miniature, M8, Flush, 6-36VDC, 3mm Range Sn, PNP, NO, Enhanced Distance (GammaProx), 2m Cable, 8 x 40mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$192.49
Baumer
IR06.P03S-F40.NC1Z.7SCV
Inductive Proximity Sensor, Miniature, Ø6.5mm, Flush, 6-36VDC, 3mm Range Sn, NPN, NC, Enhanced Distance (GammaProx), 2m Cable, 6.5 x 40mm Cylindrical Smooth Stainless Steel Housing, -25 to +75°C, IP67
$192.49
Baumer
IR08.P03S-F40.PC1Z.7SCV
Inductive Proximity Sensor, Miniature, M8, Flush, 6-36VDC, 3mm Range Sn, PNP, NC, Enhanced Distance (GammaProx), 2m Cable, 8 x 40mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$192.49
Baumer
IR08.P03S-F40.NO1Z.7SCV
Inductive Proximity Sensor, Miniature, M8, Flush, 6-36VDC, 3mm Range Sn, NPN, NO, Enhanced Distance (GammaProx), 2m Cable, 8 x 40mm Cylindrical Threaded Stainless Steel Housing, -25 to +75°C, IP67
$192.49
