Baumer

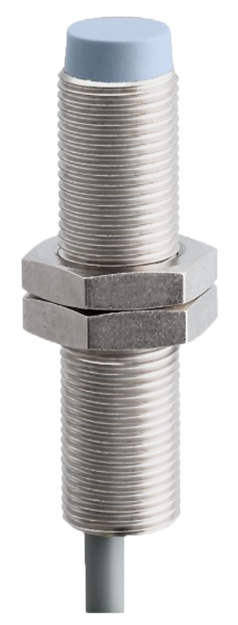

IR12.P10S-N50.NO1Z.7BO
Inductive Proximity Sensor, Ø12mm, Non-Flush, 6-36VDC, Enhanced Distance (GammaProx), 10mm Range, NPN, NO, 100mA, Ø12 x 50mm Cylindrical Threaded, M12 Connector, -25 to +75°C, IP67
$148.09
IR12.P10S-N50.NO1Z.7BCV
Alt: 11148324
$169.20
Inductive Proximity Sensor, M12, Non-Flush, 6-36VDC, 10mm Range Sn, NPN, NO, Enhanced Distance (GammaProx), 2m Cable, 12 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer IR12 inductive proximity switch with enhanced sensing distance (GammaProx) detects metal objects without contact and offers an increased sensing distance compared with standard inductive sensors, with triple sensing distance on selected models.
Key Features
- Enhanced sensing distance (GammaProx); triple sensing distance depending on model
- Nominal sensing distance 6 mm or 10 mm depending on model
- Flush or non-flush mounting depending on model
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 6-36 VDC
- Connection via 2 m cable or M12 connector depending on model
- Cylindrical threaded housing in nickel plated brass
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
IR12.P10S-N50.NC1Z.7BCV
Inductive Proximity Sensor, M12, Non-Flush, 6-36VDC, 10mm Range Sn, NPN, NC, Enhanced Distance (GammaProx), 2m Cable, 12 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$169.20
Baumer
IR12.P10S-N50.PC1Z.7BCV
Inductive Proximity Sensor, M12, Non-Flush, 6-36VDC, 10mm Range Sn, PNP, NC, Enhanced Distance (GammaProx), 2m Cable, 12 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$169.20
Baumer
IR12.P10S-N50.PO1Z.7BCV
Inductive Proximity Sensor, M12, Non-Flush, 6-36VDC, 10mm Range Sn, PNP, NO, Enhanced Distance (GammaProx), 2m Cable, 12 x 50mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$169.20
Baumer
IR12.P10S-N40.NO1Z.7BCV
Inductive Proximity Sensor, M12, Non-Flush, 6-36VDC, 10mm Range Sn, NPN, NO, Enhanced Distance (GammaProx), 2m Cable, 12 x 40mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$169.20
