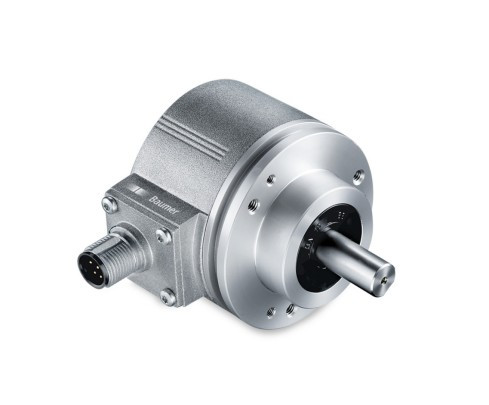

Product image is representative only, please verify specifications.
EIL580-SC10.5BE.05000.A
Alt: 11129308
$420.82
Incremental Encoder, Ø10 x 20mm Solid Shaft with Clamping Flange, IP65, Flange Socket Radial, M12, 8-pin, Male Contacts, CCW, 5 VDC, TTL/RS422, 6-Channel, EIL580-SC Series
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Voltage supply: 4.75 - 30 VDC
- Pulses per revolution: 1 - 65536
- Reference signal: Zero pulse 90° or 180°
- Sensing method: Optical
- Size (flange): ø58 mm
- Shaft type: ø10 x 20 mm, solid shaft with flat, ø3/8" x 4/5" (ø9.525 x 20.32 mm), solid shaft with flat
- Precise optical sensing (interpolated)
- Output signal level programmable (TTL or HTL)
- Clamping flange
- Connection axial, radial or tangential
- Pulses per revolution 1 - 65536, programmable
- High protection up to IP 67
- High resistance to shock and vibrations
Material
- Housing: aluminum die-cast
- Flange: aluminum
- Solid shaft: stainless steel
Programmable parameters:
- Output level TTL/HTL
- Pulse number 1 - 65536
- Zero pulse width 90°/180°
- Zero pulse position
- Signal sequence
