O300.GI-GW1B.72N
Baumer

O300.GI-GW1B.72N

Alt: 11121712

$204.20

Diffuse Sensor, Background Suppression, Pulsed Infrared Diode, 10-30VDC, 30-300mm Sensing Distance Tw, qTeach, Push-Pull, Light/Dark Operate, M8 4-Pin Connector, 12.9 x 32.3 x 23mm (WxHxD), Plastic (ASA/PMMA), -25 to +60°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

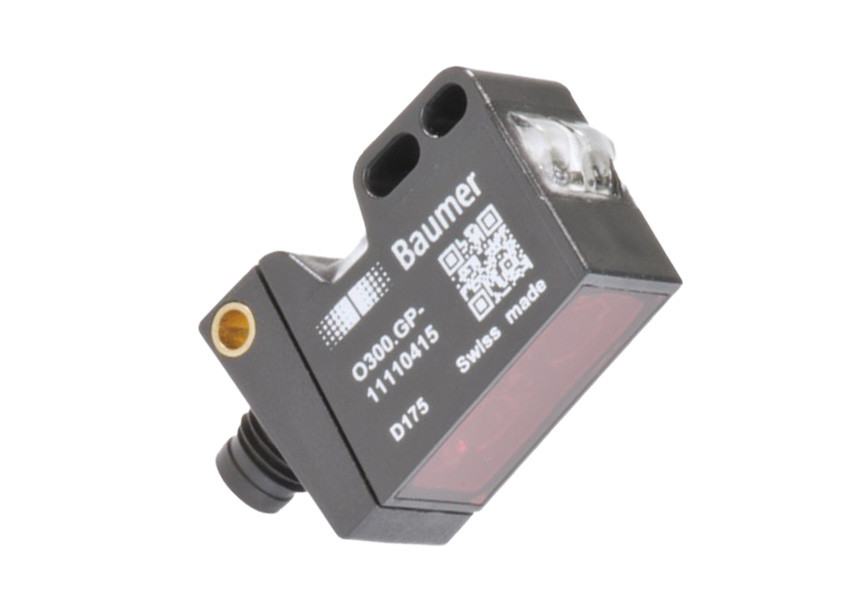

Baumer O300 background suppression sensors that detect objects and ignore the background
Description

The Baumer O300 diffuse sensors with background suppression detect objects within a defined sensing distance while suppressing whatever is behind them. Detection is based on the position of the object rather than only the amount of light it reflects, which helps separate the target from the background.

Key Features

  • Pulsed infrared diode, pulsed red laser diode, PinPoint LED and pulsed red LED light source depending on model
  • Laser class 1 or 1M depending on model on laser models
  • Sensing distance Tw up to 300mm depending on model
  • 10-30VDC and 11-30VDC supply voltage depending on model
  • push-pull, NPN complementary and PNP complementary output versions
  • Light/dark operate output function
  • IO-Link interface on selected models
  • Adjustment options include qTeach, Teach-in/IO-Link and qTeach/1-Step Teach-in
  • 2m 4-Pin Cable and M8 4-Pin Connector connection versions
  • Compact 12.9 x 32.3 x 23mm housing
  • Plastic (ASA/PMMA) housing
  • IP67 protection

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

O300.EL-GW1B.72N

Thru-Beam Sensor, Receiver, 10-30VDC, 40m Actual Range Sb, qTeach, Push-Pull, Light/Dark Operate, M8 4-Pin Connector, 12.9 x 32.3 x 23mm (WxHxD), Plastic (ASA/PMMA), -25 to +60°C, IP67, Emitter Sold Separately

$89.69

Baumer

O300.SP-GW1B.72N

SmartReflect Light Barriers, Miniature, M8, 4-Pin, Pulsed Pinpoint LED, Push-Pull, IP67

$266.89

Baumer

O300.ER-GW1B.72N

Thru-Beam Sensor, Receiver, 10-30VDC, 10m Actual Range Sb, qTeach, Push-Pull, Light/Dark Operate, M8 4-Pin Connector, 12.9 x 32.3 x 23mm (WxHxD), Plastic (ASA/PMMA), -25 to +60°C, IP67, Emitter Sold Separately

$89.69

Baumer

O300.GP-GW1B.72N

Diffuse Sensor with Background Suppression (BGS), Pulsed PinPoint LED, 10-30VDC, 30-200mm Sensing Distance Tw, 15-200mm Sensing Range Tb, qTeach/External Sensing Adjustment, Light/Dark Operate, Push-Pull, <100mA, M8 4-Pin Connector, Rectangular

$266.89

Baumer

O300.RP-GW1B.72N

Retroreflective Sensor, Polarization Filter, PinPoint LED, 10-30VDC, 5m Actual Range Sb, qTeach, Push-Pull, Light/Dark Operate, M8 4-Pin Connector, 12.9 x 32.3 x 23mm (WxHxD), Plastic (ASA/PMMA), -25 to +60°C, IP67

$160.80
