Baumer
IR18.P06F-F60.NC1Z.7BO
Inductive Proximity Sensor, M18, Flush, 5-36VDC, 6mm Range Sn, NPN, NC, Factor 1 All Metals, M12 4-Pin Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
$91.09
IR18.P06F-F60.PC1Z.7BO
Alt: 11119456
$91.09
Inductive Proximity Sensor, M18, Flush, 5-36VDC, 6mm Range Sn, PNP, NC, Factor 1 All Metals, M12 4-Pin Connector, 18 x 60mm Cylindrical Threaded Nickel Plated Brass Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

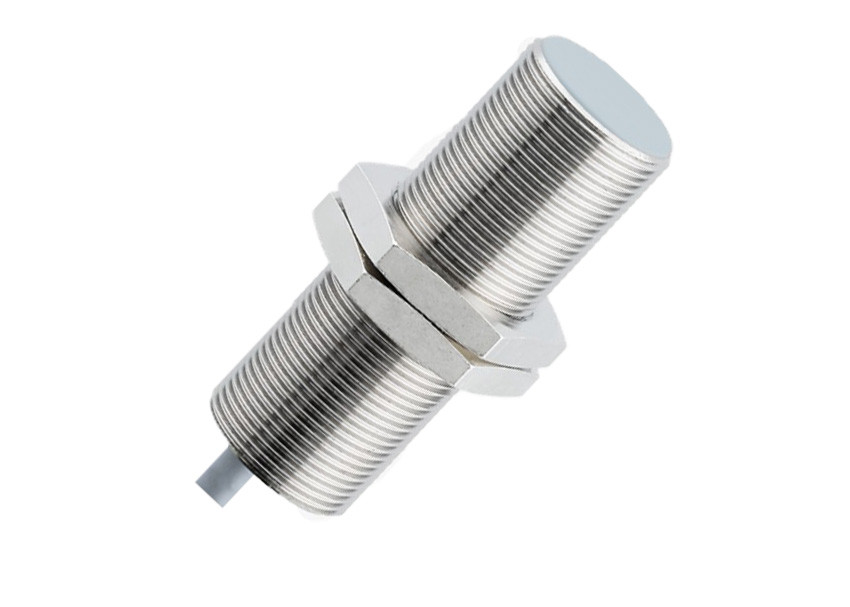

The Baumer IR18 Factor 1 inductive proximity switch detects all metals at the same high sensing distance, so mild steel, stainless steel, aluminum and copper targets are sensed alike. End-of-line calibration keeps serial dispersion low, and the switching behavior is stable over temperature and time.
Key Features
- Factor 1: same sensing distance on mild steel, stainless steel, aluminum and copper
- End-of-line calibration for low serial dispersion
- Nominal sensing distance 6 mm or 8 mm depending on model
- Flush or quasi-flush mounting depending on model
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 5-36 VDC
- Connection via 2 m cable or M12 4-Pin connector depending on model
- Cylindrical threaded housing in nickel plated brass
- Operating temperature -25 to +75 °C
- Protection class IP67
