Baumer
IR06.P02F-F46.NO1Z.7SL

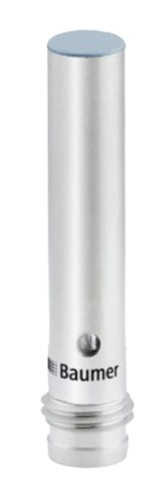

Inductive Proximity Sensor, Ø6.5mm, Flush, 5-36VDC, 2mm Range Sn, NPN, NO, Factor 1 All Metals, M8 Connector, 6.5 x 46mm Cylindrical Smooth Stainless Steel (V2A) Housing, -25 to +75°C, IP67
$101.80
IR06.P02F-F46.PO1Z.7SL
Alt: 11117730
$101.80

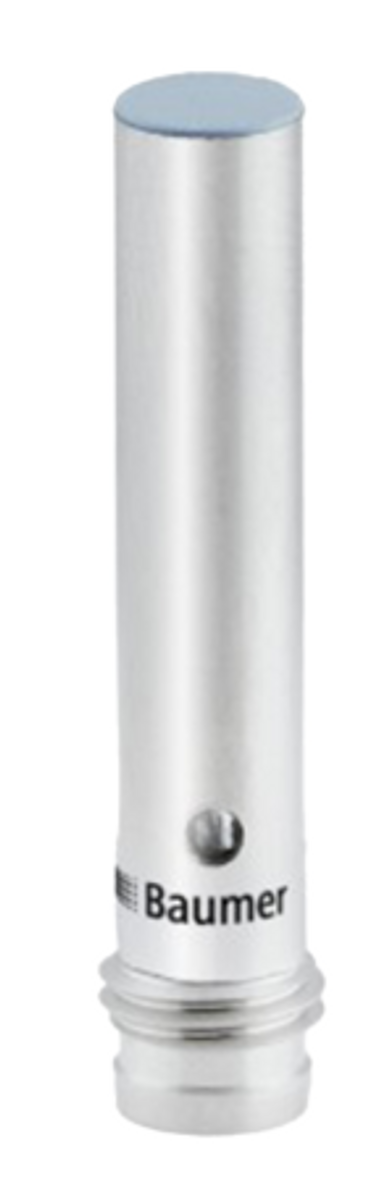

Inductive Proximity Sensor, Ø6.5mm, Flush, 5-36VDC, 2mm Range Sn, PNP, NO, Factor 1 All Metals, M8 Connector, 6.5 x 46mm Cylindrical Smooth Stainless Steel (V2A) Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer IR06 Factor 1 inductive proximity switch detects all metals at the same high sensing distance, so mild steel, stainless steel, aluminum and copper targets are sensed alike. End-of-line calibration keeps serial dispersion low, and the switching behavior is stable over temperature and time.
Key Features
- Factor 1: same sensing distance on mild steel, stainless steel, aluminum and copper
- End-of-line calibration for low serial dispersion
- Nominal sensing distance 2 mm
- Flush mounting
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 5-36 VDC
- Connection via 2 m cable or M8 connector depending on model
- Cylindrical smooth housing in stainless steel (V2A)
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$169.20
Baumer
IR06.P02F-F46.NC1Z.7SL
Inductive Proximity Sensor, Ø6.5mm, Flush, 5-36VDC, 2mm Range Sn, NPN, NC, Factor 1 All Metals, M8 Connector, 6.5 x 46mm Cylindrical Smooth Stainless Steel (V2A) Housing, -25 to +75°C, IP67
$101.80
Baumer
IR06.P02F-F46.PC1Z.7SL
Inductive Proximity Sensor, Ø6.5mm, Flush, 5-36VDC, 2mm Range Sn, PNP, NC, Factor 1 All Metals, M8 Connector, 6.5 x 46mm Cylindrical Smooth Stainless Steel (V2A) Housing, -25 to +75°C, IP67
$101.80
Baumer
IR08.P02F-F46.PO1Z.7SL
Inductive Proximity Sensor, M8, Flush, 5-36VDC, 2mm Range Sn, PNP, NO, Factor 1 All Metals, M8 3-Pin Connector, 8 x 46mm Cylindrical Threaded Stainless Steel (V2A) Housing, -25 to +75°C, IP67
$81.80
