$245.69
MFFM 08P3424/PL
Alt: 11050339
$227.00

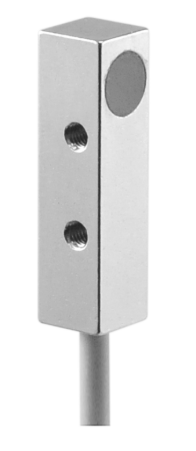

Magnetic Proximity Sensor, Flush, 10-30VDC, 60mm Range Sn, PNP, NC, 2m PUR Cable, Rectangular Nickel Plated Brass Housing, -25 to +75°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer MFFM magnetic proximity switch uses a magneto-resistive sensing principle to detect a permanent magnet. The nominal sensing distance applies in conjunction with the Baumer permanent magnet available as an accessory.
Key Features
- Magneto-resistive sensing principle
- Permanent magnet available as an accessory
- Nominal sensing distance 60 mm
- Flush mounting
- NPN or PNP switching output, NC or NO depending on model
- Supply voltage 10-30 VDC
- Connection via 2 m PUR cable
- Rectangular housing in nickel plated brass
- Operating temperature -25 to +75 °C
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
MFFM 08P1424/PL
Magnetic Proximity Sensor, Flush, 10-30VDC, 60mm Range Sn, PNP, NO, 2m PUR Cable, Rectangular Nickel Plated Brass Housing, -25 to +75°C, IP67
$227.00
Baumer
MFFM 08N3424/PL
Magnetic Proximity Sensor, Flush, 10-30VDC, 60mm Range Sn, NPN, NC, 2m PUR Cable, Rectangular Nickel Plated Brass Housing, -25 to +75°C, IP67
$227.00
Baumer
MFFM 08N1424/PL
Magnetic Proximity Sensor, Flush, 10-30VDC, 60mm Range Sn, NPN, NO, 2m PUR Cable, Rectangular Nickel Plated Brass Housing, -25 to +75°C, IP67
$227.00
