IFRR 18P13T1/L-9
Baumer

IFRR 18P13T1/L-9

Alt: 11016018

$202.60

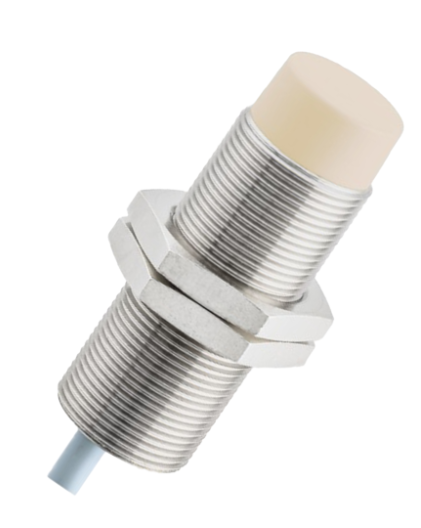

Inductive Proximity Sensor, M18, Non-Flush, 6-30VDC, 12mm Range Sn, PNP, NO, Washdown Design, 2m PVC Cable, 18 x 55mm Cylindrical Threaded Stainless Steel 1.4404 (V4A) Housing, -40 to +80°C, IP68/IP69K proTect+

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Baumer IFRR washdown inductive sensor, FDA compliant, Ecolab approved
Description

The Baumer IFRR washdown inductive proximity switch has a washdown design with a stainless steel 1.4404 (V4A) housing and liquid silicone rubber (LSR) components. The sensor is FDA compliant and Ecolab approved.

Key Features

  • Washdown design
  • Stainless steel 1.4404 (V4A) housing with LSR (liquid silicone rubber)
  • FDA compliant and Ecolab approved
  • Nominal sensing distance 4 mm, 6 mm, 8 mm or 12 mm depending on model
  • Flush, non-flush or quasi-flush mounting depending on model
  • NPN or PNP switching output, NC or NO depending on model
  • Supply voltage 6-30 VDC
  • Connection via 2 m PVC cable
  • Cylindrical threaded housing in stainless steel 1.4404 (V4A)
  • Operating temperature -40 to +80 °C
  • Protection class IP68/IP69K proTect+

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

IFRR 18P13T1/PL-9

Inductive Proximity Sensor, M18, Non-Flush, 6-30VDC, 12mm Range Sn, PNP, NO, Outdoor Design, 2m PUR Cable, 18 x 55mm Cylindrical Threaded Stainless Steel 1.4404 (V4A) Housing, -40 to +80°C, IP68/IP69K proTect+

$202.60

Baumer

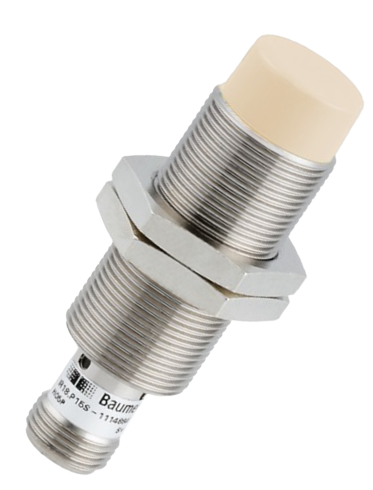

IFRR 18P13T1/S14L-9

Inductive Proximity Sensor, M18, Non-Flush, 6-30VDC, 12mm Range Sn, PNP, NO, Outdoor Design, M12 Connector, 18 x 60mm Cylindrical Threaded Stainless Steel 1.4404 (V4A) Housing, -40 to +80°C, IP68/IP69K proTect+

$195.09

Baumer

IFRR 18N37T1/L-9

Inductive Proximity Sensor, M18, Quasi-Flush, 6-30VDC, 8mm Range Sn, NPN, NC, Washdown Design, 2m PVC Cable, 18 x 55mm Cylindrical Threaded Stainless Steel 1.4404 (V4A) Housing, -40 to +80°C, IP68/IP69K proTect+

$202.60

Baumer

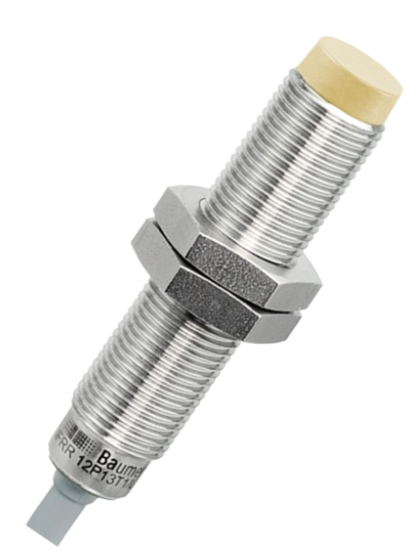

IFRR 12N13T1/L-9

Inductive Proximity Sensor, M12, Non-Flush, 6-30VDC, 6mm Range Sn, NPN, NO, Washdown Design, 2m PVC Cable, 12 x 55mm Cylindrical Threaded Stainless Steel 1.4404 (V4A) Housing, -40 to +80°C, IP68/IP69K proTect+

$195.09

Baumer

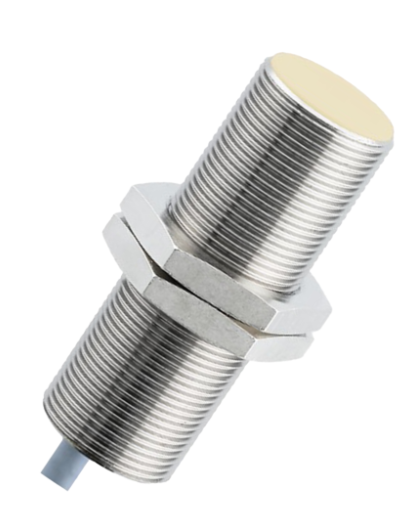

IFRR 18N13T1/L-9
