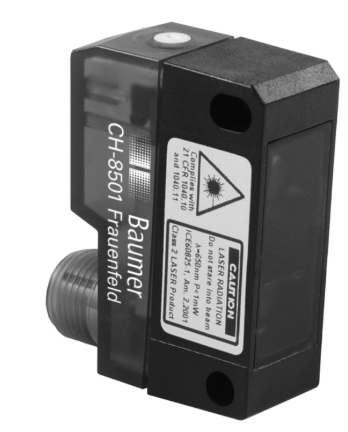

OHDK 14P5101/S14
Baumer

OHDK 14P5101/S14

Alt: 11001256

$912.40

Diffuse Sensor, Background Suppression, Pulsed Red Laser Diode, Laser Class 2, 10-30VDC, 20-350mm Sensing Distance Tw, Mechanical 9-Turn, PNP, Light/Dark Operate, M12 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -10 to +50°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Baumer OHDK background suppression sensors that detect objects and ignore the background
Description

The Baumer OHDK diffuse sensors with background suppression detect objects within a defined sensing distance while suppressing whatever is behind them. Detection is based on the position of the object rather than only the amount of light it reflects, which helps separate the target from the background.

Key Features

  • Pulsed red laser diode light source
  • Laser class 1 or 2 depending on model
  • Sensing distance Tw up to 1750mm depending on model
  • 10-30VDC and 11-30VDC supply voltage depending on model
  • push-pull, NPN and PNP output versions
  • Light/dark operate output function
  • Adjustment options include Teach-in, mechanical 9-Turn and mechanical 5-Turn
  • M12 5-Pin Connector, 2m Cable, 2m 4-Pin Cable and M12 4-Pin Connector connection versions
  • Plastic, Plastic (ASA/MABS) and Plastic (ASA) housing depending on model
  • IP67 and IP65 protection depending on model

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Baumer

OHDK 14P5101

Diffuse Sensor, Background Suppression, Pulsed Red Laser Diode, Laser Class 2, 10-30VDC, 20-350mm Sensing Distance Tw, Mechanical 9-Turn, PNP, Light/Dark Operate, 2m 4-Pin Cable, 14.8 x 43 x 32.7mm (WxHxD), Plastic (ASA/MABS), -10 to +50°C, IP67

$928.40

Baumer

FZDK 14P5101/S14

Diffuse Reflective Sensor, Pulsed Red LED, 10-30VDC, 5-600mm Sensing Distance Tw, 270° Potentiometer, PNP, Light/Dark Operate, M12 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67

$325.60

Baumer

OEDK 14P5101/S14

Thru-Beam Sensor, Receiver, 10-30VDC, 8m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, M12 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Emitter Sold Separately

$528.49
