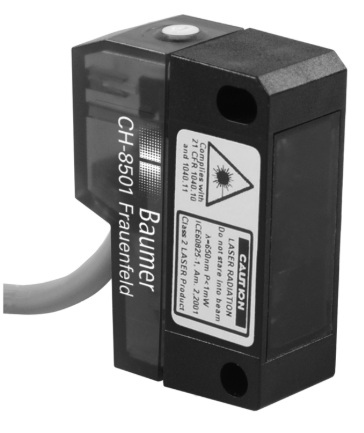

OHDK 14N5101
Baumer

OHDK 14N5101

Alt: 11001252

$928.40

Diffuse Sensor, Background Suppression, Pulsed Red Laser Diode, Laser Class 2, 10-30VDC, 20-350mm Sensing Distance Tw, Mechanical 9-Turn, NPN, Light/Dark Operate, 2m 4-Pin Cable, 14.8 x 43 x 32.7mm (WxHxD), Plastic (ASA/MABS), -10 to +50°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Baumer OHDK background suppression sensors that detect objects and ignore the background
Description

The Baumer OHDK diffuse sensors with background suppression detect objects within a defined sensing distance while suppressing whatever is behind them. Detection is based on the position of the object rather than only the amount of light it reflects, which helps separate the target from the background.

Key Features

  • Pulsed red laser diode light source
  • Laser class 1 or 2 depending on model
  • Sensing distance Tw up to 1750mm depending on model
  • 10-30VDC and 11-30VDC supply voltage depending on model
  • push-pull, NPN and PNP output versions
  • Light/dark operate output function
  • Adjustment options include Teach-in, mechanical 9-Turn and mechanical 5-Turn
  • M12 5-Pin Connector, 2m Cable, 2m 4-Pin Cable and M12 4-Pin Connector connection versions
  • Plastic, Plastic (ASA/MABS) and Plastic (ASA) housing depending on model
  • IP67 and IP65 protection depending on model
