Baumer
FSDK 14D9601

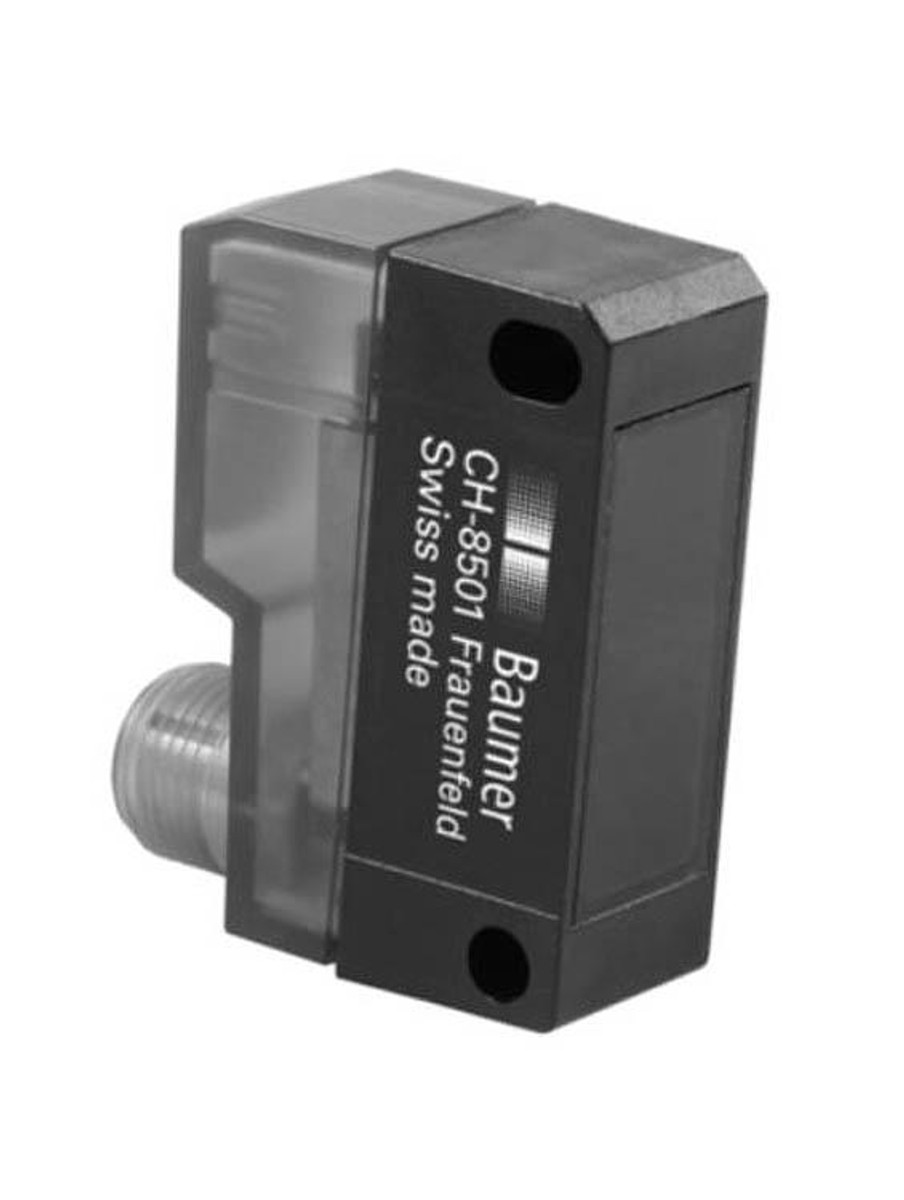

Thru-Beam Sensor, Emitter, Pulsed Red LED, 10-30VDC, 12m Actual Range Sb, 2m 4-Pin Cable, 14.8 x 43 x 31mm (WxHxD), Plastic (ASA/MABS), -25 to +65°C, IP67, Receiver Sold Separately
$207.00
FSDK 14D9601/S35A
Alt: 11001222
$180.49

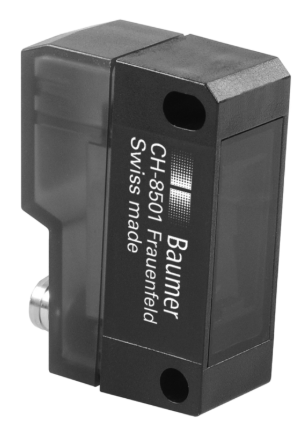

Thru-Beam Sensor, Emitter, Pulsed Red LED, 10-30VDC, 12m Actual Range Sb, M8 4-Pin Connector, 14.8 x 43 x 31mm (WxHxD), Plastic, -25 to +65°C, IP67, Receiver Sold Separately
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer FSDK thru-beam sensor emitters send the light beam to a separate matching receiver; an object is detected when it interrupts the beam between the two units.
Key Features
- Pulsed red LED light source
- Actual range Sb up to 12m depending on model
- 10-30VDC supply voltage
- 2m 4-Pin Cable, 2m Cable, M8 4-Pin Flylead, M8 3-Pin Flylead and M8 4-Pin Connector connection versions
- Plastic (ASA/MABS), Plastic (PMMA/MABS/PA), Plastic (ASA) and Plastic housing depending on model
- IP67 and IP65 protection depending on model
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$180.49
$217.00
$233.09
Baumer
FSDK 07D9601
Thru-Beam Sensor, Emitter, Pulsed Red LED, 10-30VDC, 2m Actual Range Sb, 2m Cable, 8 x 16.2 x 10.8mm (WxHxD), Plastic (PMMA/MABS/PA), -20 to +50°C, IP65, Receiver Sold Separately
$225.09
