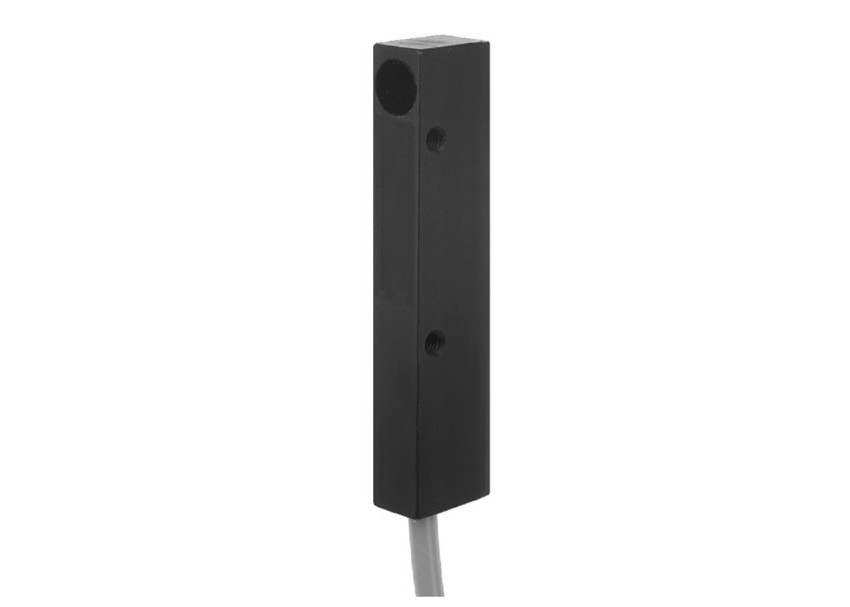

Baumer
FEDM 08P3001/S35L
Thru-Beam Sensor, Receiver, 10-30VDC, 0.7m Actual Range Sb, No Adjustment, PNP, Dark Operate, M8 3-Pin Connector, 8 x 58 x 12mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65, Emitter Sold Separately
$367.80
FEDM 08P3001
Alt: 10236644
$385.80
Thru-Beam Sensor, Receiver, 10-30VDC, 0.7m Actual Range Sb, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, 8 x 58 x 12mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65, Emitter Sold Separately
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer FEDM thru-beam sensor receivers detect objects that interrupt the light beam sent from a separate matching emitter.
Key Features
- Actual range Sb up to 6m depending on model
- 10-30VDC supply voltage
- PNP output
- dark operate, Light operate and light/dark operate output function depending on model
- M8 3-Pin Connector, 2m 3-Pin Cable and 2m 4-Pin Cable connection versions
- Anodized Aluminum and Die-Cast Zinc housing depending on model
- Operating temperature -25 to +65°C
- IP65 and IP67 protection depending on model
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
FEDM 08P3002
Thru-Beam Sensor, Receiver, 10-30VDC, 2.5m Actual Range Sb, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, 8 x 58 x 15mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65, Emitter Sold Separately
$385.80

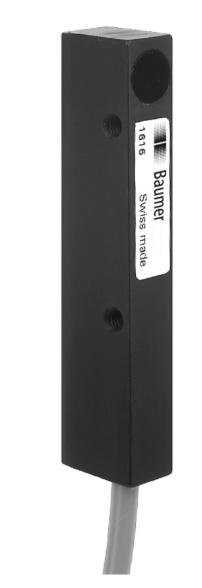

Baumer
FZDM 08P3001
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 40mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, 8 x 58 x 12mm (WxHxD), Anodized Aluminum, -25 to +65°C, IP65
$562.69
Baumer
FZAM 08P3001
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 40mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, 2m 3-Pin Cable, Ø8 x 56mm, Nickel-Plated Brass, -25 to +65°C, IP65
$528.49
Baumer

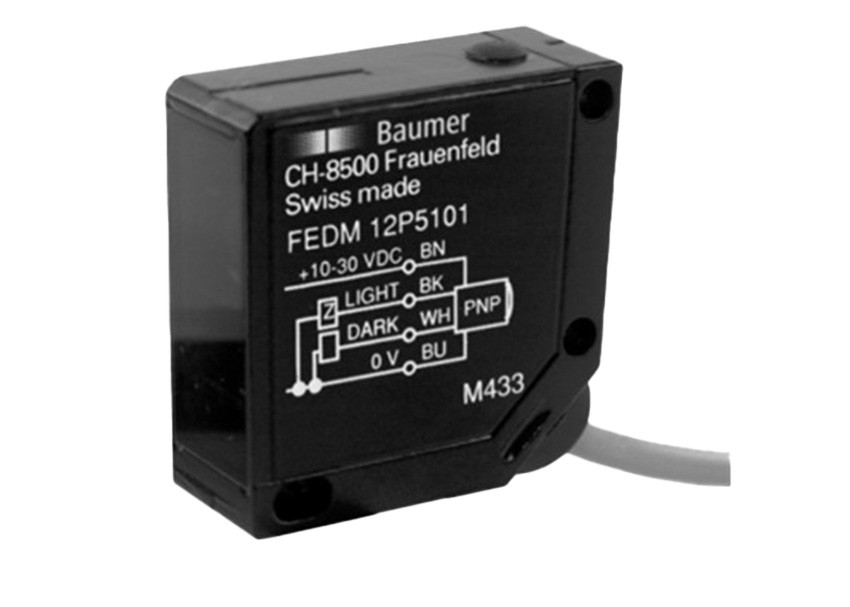

FEDM 12P5101
Thru-Beam Sensor, Receiver, 10-30VDC, 6m Actual Range Sb, No Adjustment, PNP, Light/Dark Operate, 2m 4-Pin Cable, 12.4 x 35 x 35mm (WxHxD), Die-Cast Zinc, -25 to +65°C, IP67, Emitter Sold Separately
$360.09
