UNAR 18P7903/S14G
Baumer

UNAR 18P7903/S14G

Alt: 10161026

$1,087.20

Ultrasonic Proximity Sensor, Chemically Resistant, 12-30VDC, 100-1000mm Scanning Range Sd, Teach-in, PNP, NC, M12 Connector, Ø18 x 91.5mm Cylindrical, Stainless Steel 1.4435 (V4A) Housing, 0 to +60°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

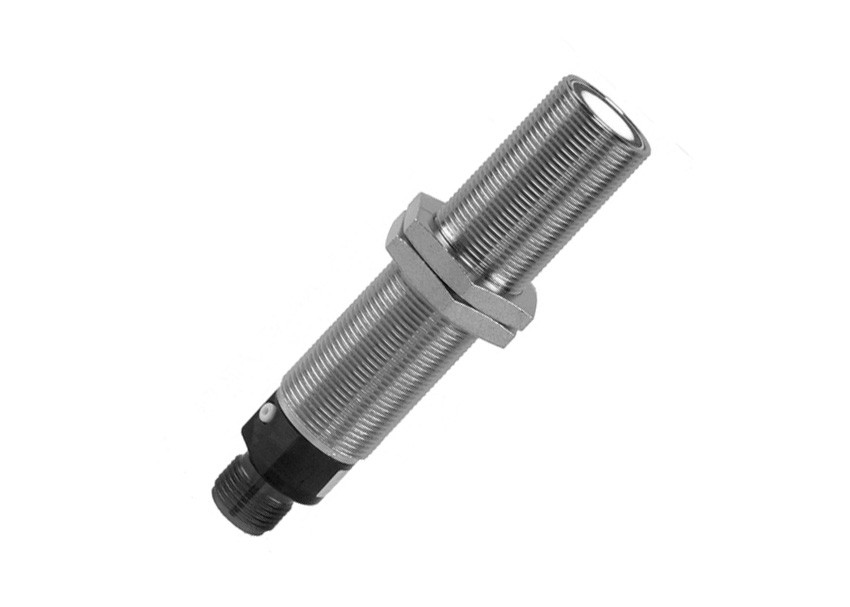

Baumer UNAR chemically robust ultrasonic proximity sensor, stainless steel
Description

The Baumer UNAR ultrasonic proximity sensor detects objects within its scanning range using ultrasound and switches an output. These chemically robust and chemically resistant versions have a stainless steel housing with a parylene-coated active face.

Key Features

  • Scanning range 10-200 mm or 100-1000 mm depending on model
  • Adjustment via external teach-in or teach-in depending on model
  • NPN or PNP switching output, NC or NO depending on model
  • Supply voltage 12-30 VDC
  • Connection via M12 connector
  • M12 x 70 mm cylindrical threaded housing in stainless steel 1.4404 (V4A) or Ø18 x 91.5 mm cylindrical housing in stainless steel 1.4435 (V4A) depending on model
  • Operating temperature 0 to +60 °C
  • Protection class IP67
