Baumer
URDK 30P6104/S14
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-2000mm Scanning Range Sd, Teach-in, PNP, NO, M12 Connector, 30 x 65 x 31mm Rectangular, Polyester/Die-Cast Zinc Housing, -10 to +60°C, IP67
$971.60
URDK 30P7104/S14
Alt: 10160518
$971.60
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-2000mm Scanning Range Sd, Teach-in, PNP, NC, M12 Connector, 30 x 65 x 31mm Rectangular, Polyester/Die-Cast Zinc Housing, -10 to +60°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

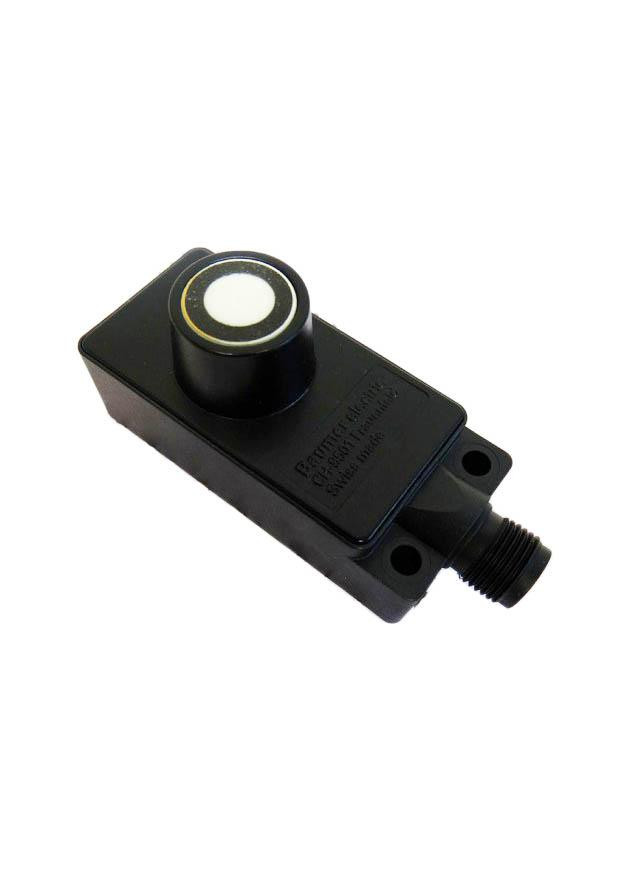

The Baumer URDK ultrasonic retro-reflective sensor works with a reflector positioned within its reflector position range (Sde).
Key Features
- Scanning range 0-200 mm, 0-400 mm, 0-1000 mm or 0-2000 mm depending on model
- Adjustment via teach-in or potentiometer depending on model
- NPN or PNP switching output, NC, NO or NO/NC selectable or push-pull switching output depending on model
- Supply voltage 12-30 VDC
- Connection via 2 m cable, M12 connector, M8 connector or M8 flylead connector depending on model
- 10.4 x 27 x 14 mm rectangular housing in plastic (ASA), 20 x 42 x 15 mm rectangular housing in polyester, 30 x 65 x 31 mm rectangular housing in polyester/die-cast zinc or 8.6 x 48.8 x 30.5 mm rectangular housing in PA12 depending on model
- Operating temperature -10 to +60 °C or 0 to +60 °C depending on model
- Protection class IP67
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
URDK 30P3703/S14
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, Potentiometer, PNP, NC, M12 Connector, 30 x 65 x 31mm Rectangular, Polyester/Die-Cast Zinc Housing, -10 to +60°C, IP67
$971.60
Baumer
URDK 30N1703/S14
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, Potentiometer, NPN, NO, M12 Connector, 30 x 65 x 31mm Rectangular, Polyester/Die-Cast Zinc Housing, -10 to +60°C, IP67
$971.60
$971.60
Baumer
URDK 30N3703/S14
Ultrasonic Retroreflective Sensor, 12-30VDC, 0-1000mm Scanning Range Sd, Potentiometer, NPN, NC, M12 Connector, 30 x 65 x 31mm Rectangular, Polyester/Die-Cast Zinc Housing, -10 to +60°C, IP67
$971.60
