UZAM 30N6103/S14
Baumer

UZAM 30N6103/S14

Alt: 10131012

$1,005.29

Ultrasonic 2-Point Proximity Sensor, Standard, 12-30VDC, 100-1000mm Scanning Range Sd, Teach-in, NPN, NO, M12 Connector, M30 x 70mm Cylindrical Threaded, Nickel Plated Brass Housing, -10 to +60°C, IP67

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

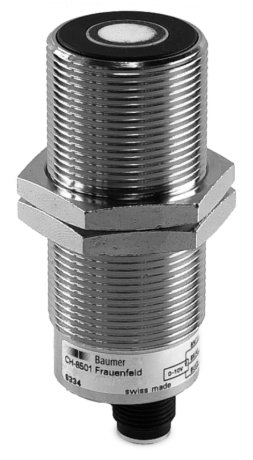

Baumer UZAM ultrasonic proximity sensor with teach-in switching
Description

The Baumer UZAM ultrasonic 2-point proximity sensor works as a 2-point proximity switch with teach-in adjustment. Versions with two separate outputs and programmable NO/NC function are available depending on model.

Key Features

  • Ultrasonic 2-point proximity switch
  • Teach-in adjustment
  • Scanning range 100-1000 mm, 350-2500 mm or 600-6000 mm depending on model
  • PNP or NPN output depending on model
  • Supply voltage 12-30 VDC
  • M12 connector or 2 m cable depending on model
  • M30 cylindrical threaded nickel plated brass housing
  • IP67 protection
