Baumer
FZAM 18N6460
Fiber Optic Sensor, 150 mm, 800 mm, Pulsed Infrared Diode, NPN, Teach-in, 2 Meter Cable (4 Pin), IP 67
$347.00
FZAM 18N6460/S14
Alt: 10128875
$330.09
Fiber Optic Sensor, Pulsed Infrared Diode, 10-30VDC, Teach-in, NPN, Light/Dark Operate, M12 4-Pin Connector, Ø18 x 60mm, Nickel-Plated Brass/PC, -25 to +55°C, IP67, Fiber Optic Cable Sold Separately
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description

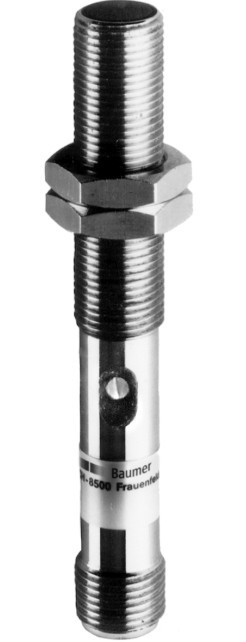

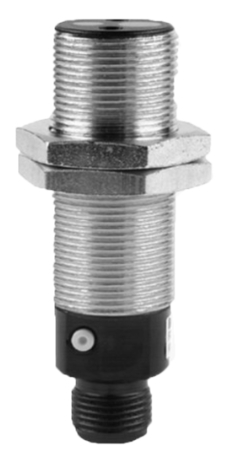

The Baumer FZAM fiber optic sensors are the amplifier units for Baumer fiber optic cables. The sensor electronics mount away from the detection point while the fiber optic cable carries light to and from the sensing head.
Key Features
- Pulsed infrared diode light source
- 10-30VDC supply voltage
- PNP and NPN output versions
- Light operate and light/dark operate output function depending on model
- Adjustment options include 15-Turn potentiometer, 20-Turn potentiometer, 270° potentiometer and Teach-in
- 2m 3-Pin Cable, 2m 4-Pin Cable and M12 4-Pin Connector connection versions
- Nickel-Plated Brass/PC and Nickel-Plated Brass housing depending on model
- IP65 and IP67 protection depending on model
