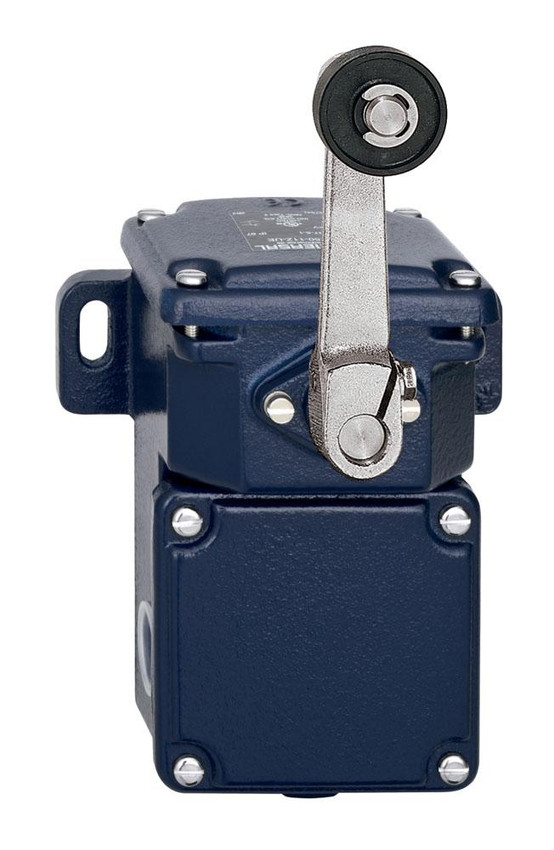

Product image is representative only, please verify specifications.
101058150
Alt: TD250-11/11Z
Heavy Duty Limit Switch, Screw Connection, Metal Enclosure, 1NC Left/1NC Right 1NO Left/1NO Right Contacts, IP65/IP66/IP67
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
The Schmersal T/M 250 heavy-duty limit switches are built for position sensing in demanding industrial environments where lighter-duty switches fall short. The series uses a rugged cast-iron enclosure with a field-configurable switching mechanism, letting the same base switch be set to actuate to the right, left, or in both directions. Two M25 x 1.5 cable entries and an IP67 rating keep the internal contacts sealed against dust and washdown.
Key Features
- Cast-iron enclosure with galvanized, painted finish for corrosion resistance
- Slow-action (creep) or snap-action contact blocks, available in NO, NC, and combined configurations
- Field-adjustable switching direction (right, left, or both)
- Roller lever actuator standard, with belt-alignment and plunger variants available in the platform
- Rated 400VAC, 4A (AC-15), with 16A thermal test current
- 2 x M25 x 1.5 cable entries with screw-terminal connections
- IP67 protection rating
- Mechanical lifetime of 10,000,000 operations minimum
Certifications
- UL Listed, cULus
- CE Marked
- RoHS Compliant
- Compliant with EN 60947-5-1
