Baumer
FZDM 16N5101
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 400mm Sensing Distance Tw, 270° Potentiometer, NPN, Light/Dark Operate, 2m 4-Pin Cable, 15.4 x 50 x 50mm (WxHxD), Die-Cast Zinc, -25 to +65°C, IP67
$448.29
FZDM 16N5101/S14
Alt: 10101694
$437.00
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 400mm Sensing Distance Tw, 270° Potentiometer, NPN, Light/Dark Operate, M12 4-Pin Connector, 15.4 x 50 x 50mm (WxHxD), Die-Cast Zinc, -25 to +65°C, IP67
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
The Baumer FZDM diffuse sensors detect objects by the light reflected directly back from the object surface, so no separate reflector or receiver is needed at the far side of the detection area.
Key Features
- Pulsed infrared diode light source
- Sensing distance Tw up to 400mm depending on model
- 10-30VDC supply voltage
- PNP and NPN output versions
- Light operate, Light/dark operate and dark operate output function depending on model
- Adjustment by 270° potentiometer
- 2m 3-Pin Cable, 2m 4-Pin Cable, M12 4-Pin Connector and M8 3-Pin Connector connection versions
- Anodized Aluminum and Die-Cast Zinc housing depending on model
- Operating temperature -25 to +65°C
- IP65 and IP67 protection depending on model
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Baumer
FPDM 16N5101/S14
Photoelectric Retro-Reflective Sensor, 7.3 Meter Range, 660 nm Wave Length, Polarized Filter, Pulsed Red LED, PNP, Connector M12 4 Pin, IP67
$414.49
Baumer

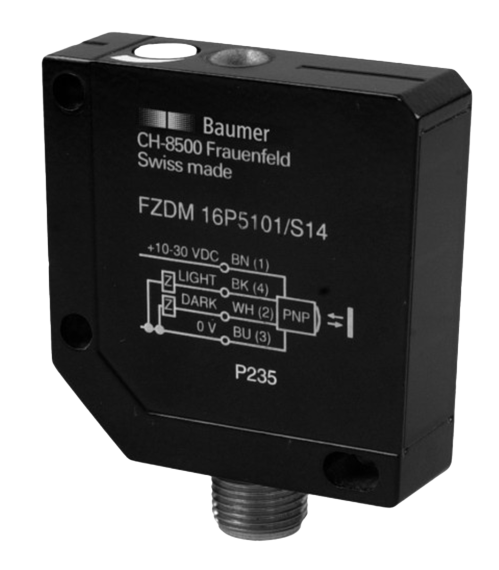

FZDM 16P5101/S14
