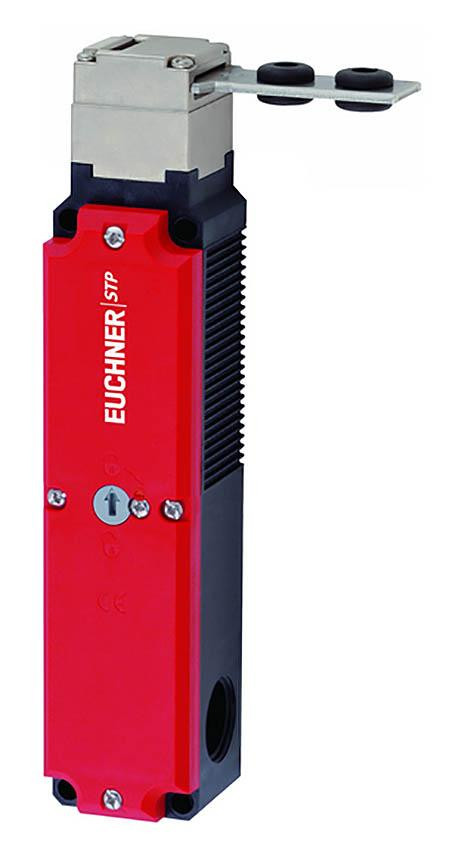

099272

Features Include:

• Actuating head made of metal
• Auxiliary release on the front
• With door monitoring contact
• Power consumption: 8 W
• Connection cross-section: 0.34 ... 1.5 mm²
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Short circuit protection according to IEC 60269-1: 4A gG
• Switching current: min. at 24 V / 1 mA
• Switching voltage: min. at 10 mA    12 V
• Utilization category: DC-13 4A 24 / AC-15 4A 230V
• Solenoid operating voltage: AC/DC 24 V -15% ... +10%
• Solenoid duty cycle: 100 %
• rated thermal current Ith: 4 A

Mechanical values:

• Approach direction: A
• Approach speed: max. 20 m/min
• Number of door position positively driven contacts: 2
• Number of guard lock monitoring positively driven contacts: 2
• Connection: 3 x M20 x 1.5
• Degree of protection: IP67
• Extraction force: 30 N

• Housing Material: Reinforced thermoplastic
• Contact Material: Silver alloy, gold flashed
• Actuation frequency: max. 1200 1/h
• Actuating force: 35 N
• Mechanical life: 1 x 10⁶
• Installation orientation: any
• Insertion depth: 24.5 mm
• Switching principle: Slow-action switching contact
• Retention force: 20 N
• Ambient temperature: -20 ... +55 °C
• Locking force Fmax: 2500 N
• Locking force FZh: 2000 N
• Guard locking principle: Closed-circuit current principle

Technical Information:

• Euchner Safety Switches with Plastic Housing Catalog
