Weg
01012ET3H256T-W22

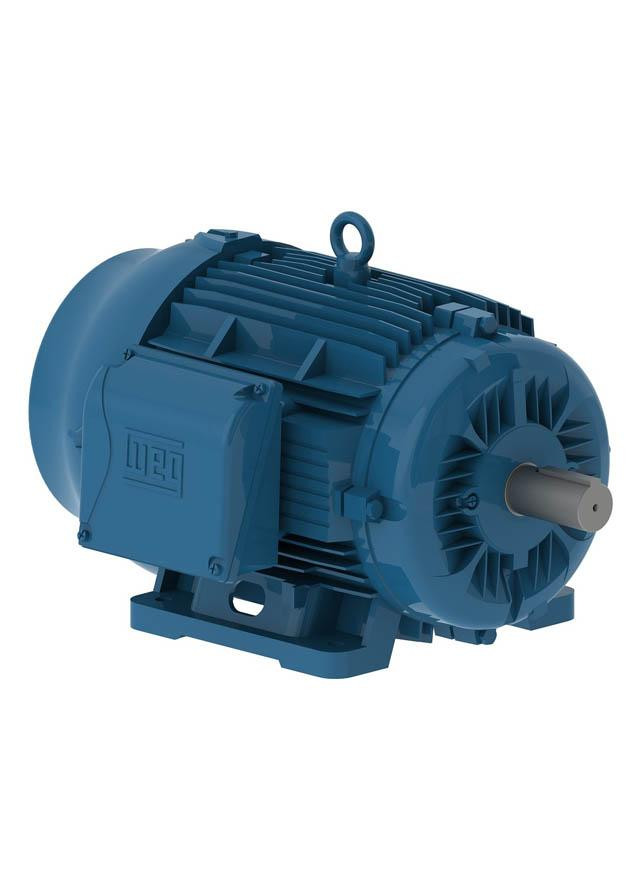

Motor, 10hp, 1200rpm, 3 Phase, 575V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$1,797.00
01012ET3H256T-S
Alt: 12730572
$1,566.00
Motor, 10hp, 1200rpm, 3 Phase, 575V, 254/6T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 10hp, 1200rpm, TEFC, Foot Mount, Rolled Steel, 575V, 256T Frame
Product Features:
Frame
- 254/6T
Rated Voltage
- 575 V
Frequency
- 60 Hz
Rated Speed
- 1175 rpm
No Load Current
- 5.69 A
Rated Current
- 11.0 A
Rated Torque
- 44.1 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 237 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
