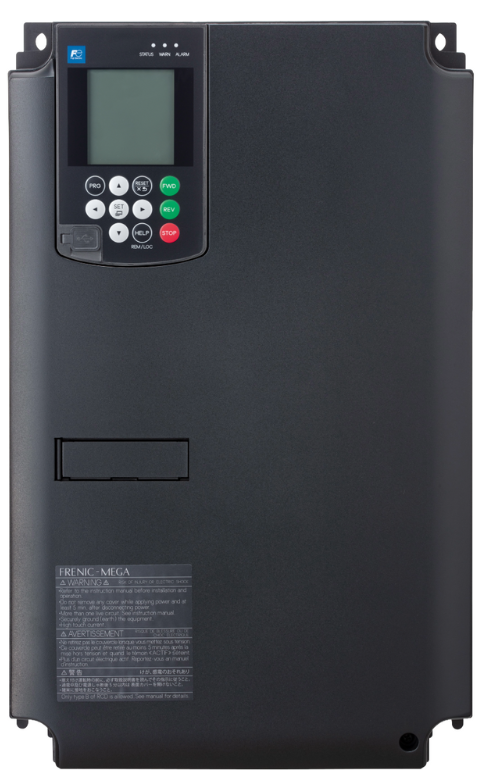

FRN0115G2S-2GU

The Fuji Electric FRENIC-MEGA (G2) is the next evolution in AC drive technology, delivering exceptional performance, versatility, and reliability across industrial, HVAC, and pumping applications. Designed as a true 3-in-1 solution, this high-performance drive combines the capabilities of multiple previous FRENIC families into a single, unified platform. Reducing inventory, simplifying configuration, and maximizing operational flexibility has never been easier.

Built on Fuji Electric’s proven FRENIC-MEGA foundation, the G2 enhances functionality with advanced motor control, intelligent process automation, and powerful communication options. With horsepower ratings from .5 to 1,200 HP and voltage options up to 460V, the G2 drive provides a robust and scalable solution for constant or variable torque applications.

The FRENIC-MEGA (G2) redefines flexibility and performance with a unified drive platform that meets the needs of multiple markets. Its ability to manage diverse applications from precision industrial control to large-scale pumping and HVAC systems makes it a cost-effective and dependable choice for OEMs, engineers, and system integrators. Backed by Fuji Electric’s industry-leading reliability, advanced communication options, and best-in-class warranty, the FRENIC-MEGA (G2) is the only drive you’ll need to power your operation.

Key Features

• All-in-one design supporting Industrial, HVAC, and Pumping applications
• Wide power range: .5 to 150 HP (230V) and .5 to 1,200 HP (460V)
• Supports both constant torque and variable torque control
• Sensorless Vector and Permanent Magnet Synchronous Motor operation
• Built-in Safe Torque Off (STO) input for enhanced safety
• Advanced PID functions including 4 PID loops and auto-tuning
• Integrated Fireman’s Override, Pipe Fill Mode, and Cascade Pump Control
• Smart monitoring with Broken Belt and Broken Pipe Detection
• Fan Fly Catching and Positioning/Orientation Functions for process efficiency
• High-speed response with 1,000 Hz current loop
• 260-step customizable logic functions for automation and process control
• Expanded built-in braking transistor up to 75 HP (230V) and 100 HP (460V)
• Built-in Metasys N2 and BACnet MS/TP communication protocols
• Optional network cards for DeviceNet, PROFIBUS-DP, PROFINET RT, Ethernet/IP, Modbus-TCP, and BACnet/IP
• Real-Time Clock with scheduling and event logging
• Easy-to-read English keypad with USB port for PC connection
• Bluetooth-enabled keypad compatible with the FRENIC Mobile Loader App for configuration and troubleshooting
• Complimentary programming and troubleshooting PC software included
• Removable control terminals for simplified maintenance

Certifications & Ratings

• UL Type 1 / NEMA 1 enclosure with optional kit
• UL Type 12 heatsink standard for 100 HP and above
• UL / cUL Listed and CE Certified for global compliance
• RoHS Compliant for environmentally safe operation
• Built on Fuji Electric’s proven, field-tested FRENIC-MEGA platform
• Standard 3-year factory warranty, extendable up to 8 years
