Teco Westinghouse
-

L510-203-H1-U

$276.48
In stock
VFD, 3hp, 230V, Single Phase Input, IP20, Medium Duty, Speed Potentiometer, Easy to Program, Compact, 150% Overload, V/F Control, Auto-Torque Boost or Sensorless Vector, 3 Phase Output

One of our most popular and easy to use drives! The TECO Westinghouse L510 series was designed to act as a rugged and versatile drive replacing the previous EV/JNEV series. With programming and operation in mind, the L510 series comes with TECO-Link configuration software for online monitoring, programming and operation via built-in RS-485. Programming parameters are grouped by function type for simple set up and purpose speed potentiometer come standard for all ratings.

Replacing the EV/JNEV series? Learn about the new and improved L510 Series here! The L510 has the following improved features compared to the EV series it is replacing:

  • 5 digital inputs with configurable and NO/NC designation (EV series has 4 configurable inputs)
  • 1 analog input at 0-10V, 1 at 40-20mA (EV series has one option to choose between: 0-10V or 4-20mA)
  • 5 digit display with scaling and diagnostics monitoring (EV series has 3 digit display, minimal monitoring capabilities beyond Hz display)
  • Modbus (standard) with option for Ethernet, DeviceNet (EV series has Modbus as standard with no options)
  • 0.01Hz digital frequency setting resolution (EV series setting resolution: 0.1 Hz)
  • 0-650Hz speed range (EV series speed range: 0-200Hz)

Additional features for the L510 series include:

  • Available in 115V, 230V and 460V
    • 115V, 1/4 to 1 hp
    • 230V, 1/4 to 3 hp
    • 460V, 1 to 3 hp
  • Small footprint/DIN rail mounting options
  • 150% overload
  • 32 bit CPU design for high speed response
  • V/F control, auto torque boost or sensorless vector
  • UL, cUL Listed, CE Marked
Ideal for these applications:
  • Conveyors, pumps, exhaust fans
  • Mixers
  • Treadmills
  • Packaging
  • HVAC
  • Food and beverage
  • Machining/tooling
  • Converting fixed speed motors to variable speed

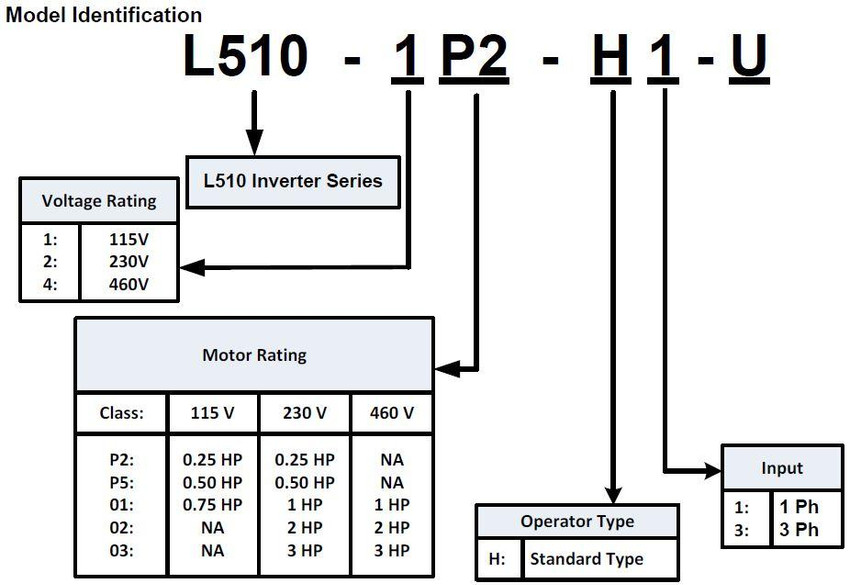

  • If you have an L510 drive without the –U on the end, the only difference with the –U is that they have ‘Westinghouse’ on the keypad and frame
More Information
SKU L510-203-H1-U
Input Voltage 200-240V, Single Phase Only
Horsepower 3 hp
Output 3 Phase Output
Housing/Enclosure IP20
Type of Drive Volts per Hertz (V/Hz), Sensorless Vector
Options Enclosed, For Centrifugal Pumps, Keypad
Availability Standard Stock
Product Series L510 Series
Warranty 3 Years
Weight - lbs. 6.500000
Manufacturer Teco Westinghouse

Features Include:

  • Input Voltage: 230V
  • Input Amps (HD) CT: 21
  • Output Voltage: 0-230V
  • Output Amps (HD) CT: 10.5
  • Dimensions (H x W x D inches): 5.67 x 4.65 x 5.8
  • Chassis Style Enclosure (IP20)
  • Sensorless Vector or V/ Hz with Auto Torque Boost Feature
  • Extensive Diagnostic and Monitoring Capabilities
  • Din Rail Option
  • PID Control
  • 8 Preset Speeds
  • Two Multi-Function Analog Inputs/ Qty 1 Analog Output
  • Built-in Modbus or BACnet Protocol via RJ 45 Interface
  • UL, cUL, and CE Approved
