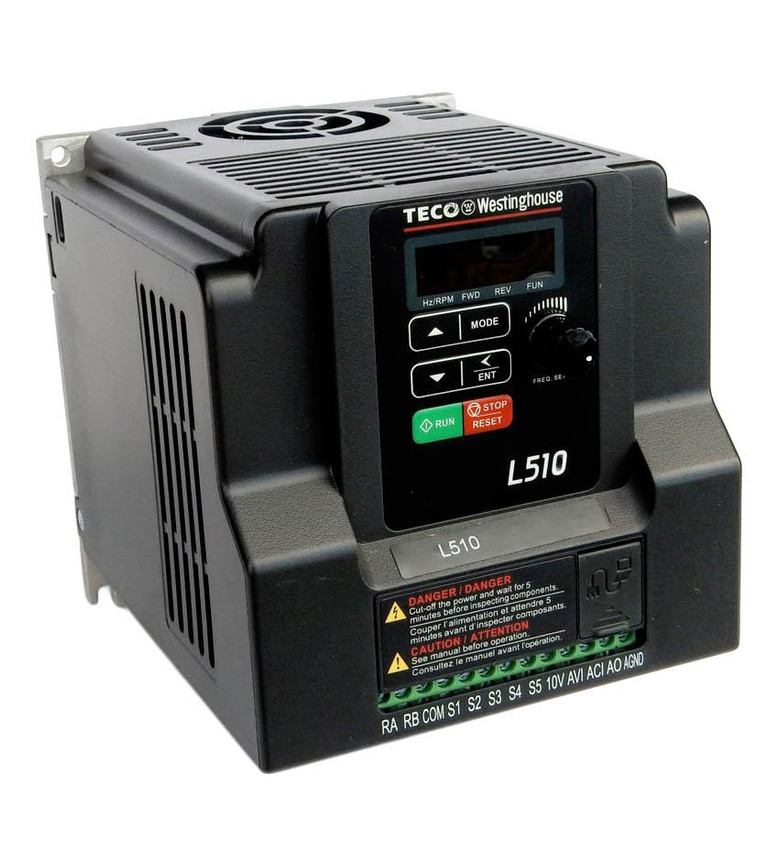

L510-101-H1-U
One of our most popular and easy to use drives! The TECO Westinghouse L510 series was designed to act as a rugged and versatile drive replacing the previous EV/JNEV series. With programming and operation in mind, the L510 series comes with TECO-Link configuration software for online monitoring, programming and operation via built-in RS-485. Programming parameters are grouped by function type for simple set up and purpose speed potentiometer come standard for all ratings.
Replacing the EV/JNEV series? Learn about the new and improved L510 Series here! The L510 has the following improved features compared to the EV series it is replacing:
- 5 digital inputs with configurable and NO/NC designation (EV series has 4 configurable inputs)
- 1 analog input at 0-10V, 1 at 40-20mA (EV series has one option to choose between: 0-10V or 4-20mA)
- 5 digit display with scaling and diagnostics monitoring (EV series has 3 digit display, minimal monitoring capabilities beyond Hz display)
- Modbus (standard) with option for Ethernet, DeviceNet (EV series has Modbus as standard with no options)
- 0.01Hz digital frequency setting resolution (EV series setting resolution: 0.1 Hz)
- 0-650Hz speed range (EV series speed range: 0-200Hz)
Additional features for the L510 series include:
- Available in 115V, 230V and 460V
- 115V, 1/4 to 1 hp
- 230V, 1/4 to 3 hp
- 460V, 1 to 3 hp
- Small footprint/DIN rail mounting options
- 150% overload
- 32 bit CPU design for high speed response
- V/F control, auto torque boost or sensorless vector
- UL, cUL Listed, CE Marked
- Conveyors, pumps, exhaust fans
- Mixers
- Treadmills
- Packaging
- HVAC
- Food and beverage
- Machining/tooling
- Converting fixed speed motors to variable speed
- If you have an L510 drive without the –U on the end, the only difference with the –U is that they have ‘Westinghouse’ on the keypad and frame
SKU | L510-101-H1-U |
---|---|
Input Voltage | 120V, Single Phase Only |
Horsepower | 1 hp |
Output | 3 Phase Output |
Housing/Enclosure | IP20 |
Type of Drive | Volts per Hertz (V/Hz), Sensorless Vector |
Options | Enclosed |
Availability | Standard Stock |
Product Series | L510 Series |
Warranty | 3 Years |
Weight - lbs. | 6.500000 |
Manufacturer | Teco Westinghouse |
Features Include:
- Input Voltage: 115V
- Output Voltage: 230V
- Dimensions (H x W x D inches): 5.67 x 4.65 x 5.8
- Chassis Style Enclosure (IP20)
- Sensorless Vector or V/ Hz with Auto Torque Boost Feature
- Extensive Diagnostic and Monitoring Capabilities
- Din Rail Option
- PID Control
- 8 Preset Speeds
- Two Multi-Function Analog Inputs/ Qty 1 Analog Output
- Built-in Modbus or BACnet Protocol via RJ 45 Interface
- UL, cUL, and CE Approved
