11692102120

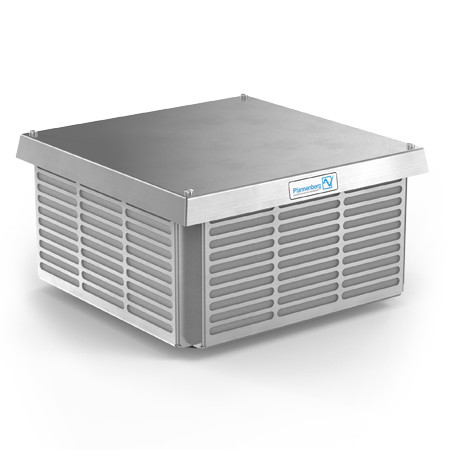

The Pfannenberg PTF 1200 Top Mount Filterfan® was engineered to address the increasing cooling demands required from electronic enclosure density and power electronics requirements.

The PTF 1200 offers over 30% more airflow over its nearest counterpart in the market, making it the perfect solution between traditional passive cooling and active cooling.

• Highest Airflow Rate
• Over 30% more airflow than any filter fan in the market pulling more hot air from the enclosure to reach the optimal temperature. The 512CFM is equivalent to a 3000 BTU air conditioner with a 5.6º F temperature difference.
• NEMA Type 3R Protection
• The closed frame design prevents unfiltered air from penetrating the cabinet.
• Energy Efficient Fan
• The highly efficient EC centrifugal fan uses precise control of the fan speed to reduce energy consumption.
• Robust Steel Housing
• The powder coated 16-gauge steel for Indoor and Stainless Steel for Outdoor.
• Easy to Change Filters
• The top plate removes by undoing four screws and filter media slides out.
• Space Saving Design
• Designed for use in crowded enclosures. This solution has no intrusion into the cabinet.
• Long Service Life
• The EC fan with advanced motor technology reduces mechanical stress providing over 75% longer service life than standard axial fans.
• Easy to Ship
• The rugged design makes standard parcel shipping possible.
