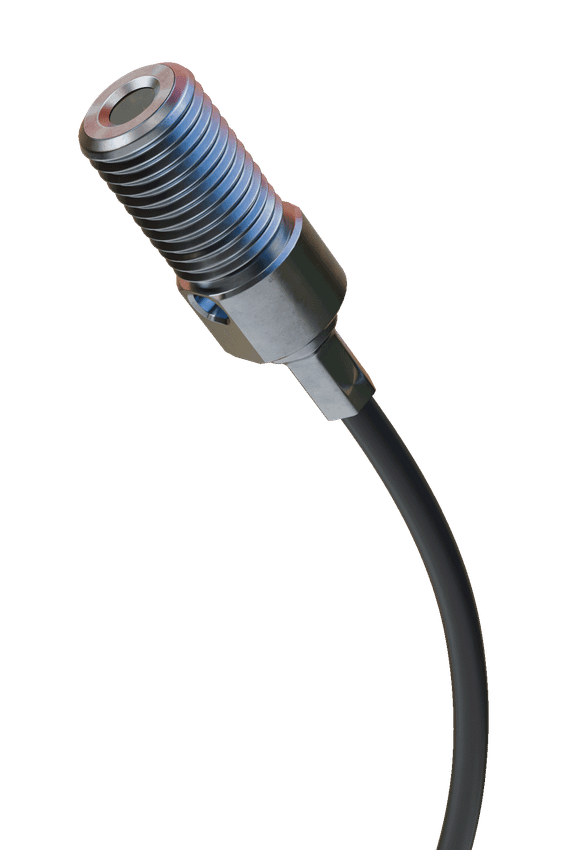

ACE-100-420-46

The CleverIR ACE Series is a high-precision non-contact temperature sensing solution designed for industries where accuracy, size, and reliability are critical. With its compact sensor head, fast response time, and multiple output signal options, the ACE series ensures seamless integration into industrial, medical, and OEM applications. Whether you need standard temperature ranges or custom configurations, the ACE delivers consistent performance in harsh conditions.

Engineered with advanced infrared technology, the ACE series provides reliable temperature monitoring with a resolution as fine as 0.005°C (0.01°F) and repeatability within 0.1°C. Its rugged, IP65-rated housing and optional accessories such as air purge jackets make it suitable for demanding environments where dust, moisture, or contaminants are present.

Key Features

• Non-contact infrared temperature measurement for fast and reliable monitoring
• Ultra-compact sensor head — only 18 mm, ideal for tight spaces
• Multiple output options: 0-5 V, 0-10 V, 4-20 mA, or UART/RS232
• Exceptional accuracy:
  • ±0.5°C for 0-100°C (32-212°F) range
  • ±1.0°C for 0-250°C (32-482°F) range
• High repeatability: <0.1°C (0.18°F)
• Interchangeability error as low as ±0.3°C (0.54°F)
• Fast response: 70 ms (digital), 100 ms (analog)
• Wide field of view options — 16°, 46°, or 87°
• Adjustable emissivity: factory default 0.95, configurable between 0.1–1.0
• Customizable configurations: temperature ranges and outputs available upon request
• Optional air purge jacket to maintain lens clarity in dusty or hot environments
• Low power consumption <300 mW at 24 VDC

Certifications & Ratings

• IP65 environmental rating for water and dust resistance
• Factory calibrated with optimized accuracy; custom calibration available
• CE compliant for international safety and performance standards
• RoHS compliant, meeting global environmental regulations
