Weg

SSW070017T5SZ

Name: Soft Starter, 17A: 5hp/230V, 10hp/460V, 15hp/575V,
Brand: Weg
SKU: SSW070017T5SZ
Price: 706.38 USD

Be the first to review this product

Alternate Part Number:

10194183

$706.38

In stock

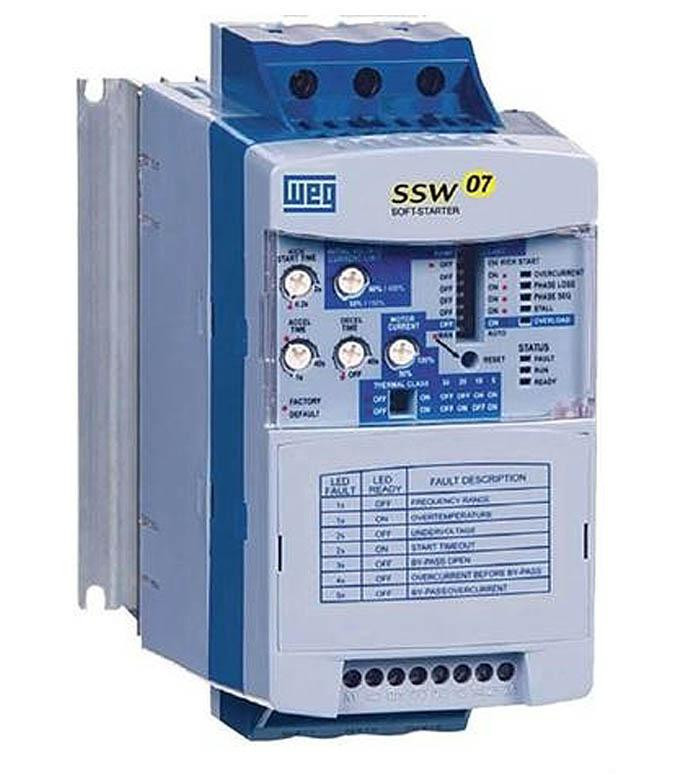

Soft Starter, 17A: 5hp/230V, 10hp/460V, 15hp/575V, 3 Phase, 6.4 x 2.3 x 5.7" Frame Size 1, IP20, Built-In - Internal AC-1 Bypass, Control Voltage: 94-264VAC, Series: SSW07

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product image is representative only, please verify specifications.

Description

The Weg SSW07 was designed for high performance on motor starts and stops! Easy to set up and use.

More Info

More Information
Part Number	SSW070017T5SZ
SKU	SSW070017T5SZ
Alternate Part Number	10194183
Weight - lbs.	4.000000
Base Unit of Measure	Each
Horsepower	5 hp
Voltage	220 to 575VAC
Warranty	18 Months
Phase	Three Phase
Options	Built-In Bypass
Ratings	See Spec
Product Series	SSW07
Amp Rating	17 Amp
Availability	Please Contact Us
Manufacturer	Weg

Weg SSW07 Soft Starters:

220 to 575VAC universal voltage
17 to 85 amp is rated IP20
130 to 200 amp is rated IP00
Easy to use
Controls acceleration and deceleration of 3 phase induction motors by controlling the voltage applied to the motor
Includes DSP - digital signal processor
Reduce stress on components during start-up
Kick start function for starting high breakaway torque loads
Built-in bypass provides size reduction and energy savings
If using external control signal you will need a keypad - either HMI-LOCAL-SSW07 or HMI-REMOTE-SSW07, to program the required digital inputs
