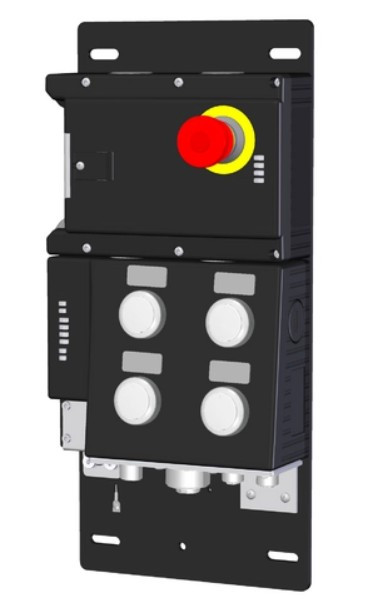

EUCHNER MGB Ethernet/IP Series multifunctional gate boxes are safety door interlocking and guard locking systems designed to protect safety doors on industrial machines and automated installations. The MGB system integrates a handle module, locking mechanism, and safety monitoring functions into a single device that helps ensure machines operate only when safety doors are properly closed and secured. By combining several safety functions and operator controls in one unit, the MGB-EI Series simplifies machine guarding while supporting reliable safety monitoring.
The EtherNet/IP version of the MGB system allows safety and diagnostic communication over an industrial Ethernet network using the CIP Safety protocol. Integrated switching functionality supports network connectivity while reducing wiring requirements in automation systems. The multifunctional design allows different control elements and safety functions to be integrated, including interlocking, guard locking, emergency stop devices, selector switches, and pushbuttons. Diagnostic information can be transmitted through EtherNet/IP messages, helping operators quickly identify device status and system conditions. Parameter settings can also be configured so that system replacement or maintenance can be completed quickly during service.
Key Features
Multifunctional safety system designed to monitor and secure machine safety doors
Integrated handle module, bolt mechanism, and guard locking system
Guard locking and guard lock monitoring for safety door protection
EtherNet/IP communication with CIP Safety protocol
Integrated EtherNet/IP switch for simplified network wiring
Supports integration of additional control elements such as pushbuttons, selector switches, and emergency stop devices depending on configuration
Comprehensive diagnostic information available through EtherNet/IP messages
Parameter configuration allows quick replacement during servicing
Handle module and locking module combination locks movable guards and also serves as a mechanical door stop
Monitoring functions detect guard position, bolt tongue position, and guard lock status
Safety outputs switch when the locking arm is in the locked position and the door cannot be opened
Locking mechanisms available using spring force or solenoid force depending on version
Connection options include industrial connectors such as M12 and 7/8-inch plugs depending on model
Optional functions include escape release and integrated operator control elements
Certifications
Performance Level PL e according to EN ISO 13849-1
