ETAC024D01
Altech Corp.

ETAC024D01

$14.01

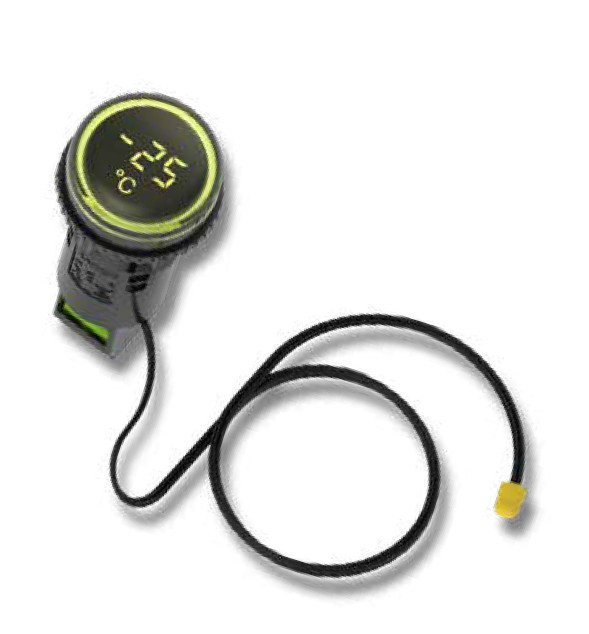

Pushbutton, Digital Temperature Indicator, 22mm, 24VDC, -50 to +80 Degrees Celsius Range, Illuminated, Clear, Above Panel: IP65 / For Terminals: IP20, RoHS / CE

Weight:
0.10 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Digital temperature indicators for panel applications.
Description

Altech Digital Indicators provide clear and reliable panel monitoring solutions for voltage, current, temperature, and frequency measurement in industrial electrical systems and automation applications. Designed for versatile service across motor control centers, renewable energy systems, HVAC panels, machine controls, and test equipment, these compact indicators offer high accuracy, easy panel mounting, and excellent environmental resistance for both shop floor and field installations.

With three digit 7-segment displays, rugged IP65 front face protection, and simple screw terminal connections, the Altech Digital Indicators make it easy to monitor real time operating conditions and detect abnormal conditions early. Whether you are verifying supply voltage, checking load current, tracking temperature conditions, or measuring system frequency, this series delivers dependable performance with low power draw and broad input tolerance.

Key Features

  • Supports a wide range of supply voltages including 24 V DC, 110 V AC, and 240 V AC depending on model
  • Operating supply ranges include 10 V DC-26 V DC, 65 V AC-280 V AC, and 70 V AC-270 V AC for flexibility in panel design
  • Low input current consumption < 50 mA
  • Input wattage typically 0.6-0.9 W
  • Standard three digit 7-segment LED display for quick visual indication of measured values
  • Voltage measurement indicators cover ranges appropriate for low voltage DC and AC mains applications
  • Current measurement indicators support 0A-12A direct or 0A-100A with external current transformer
  • Temperature indicators support −50°C to 80°C range with NTC or molded sensor input (1 meter standard wire)
  • Frequency indicators cover 10 Hz to 90 Hz for system and machine speed monitoring
  • Compact panel mount size 63 mm × 28 mm with 22.5 mm diameter hole cutout
  • Degree of protection IP65 on the front for washdown and harsh environments, IP20 at the terminals
  • Simple 2-pin screw terminal connectors (for ≤1.0 mm² wire)
  • Operating temperature −20°C to 60°C and storage temperature −30°C to 65°C
  • Air humidity tolerance from 10% to 95% non-condensing
  • Housing color black with selectable LED lens colors including red, yellow, green, blue, amber, and clear

Certifications

  • CE compliant
  • RoHS compliant
