Proximity Sensors

Proximity sensors detect the presence or absence of objects without any physical contact. Inductive proximity sensors require a metal target, capacitive can handle non-metal and liquids.

Style:
Product Price Rating Action
  • cg_ics30_long_nonflush_plug_1__21931.jpg

    Carlo Gavazzi

    ICS30L50N22PCM1E1

    Inductive Proximity Sensor, M30 Stainless Steel, M12-Plug, 22mm Range, Non-Flush, PNP NC Output, 8-60VDC, 200mA, Maximum Operating Frequency 0.3 kHz, Operating Temperature -40C to +85C, IP67-IP68-IP69K, 200 V/m Radiated Noise Immunity, Load

  • cg_ics30_long_nonflush_cable__93959.jpg

    Carlo Gavazzi

    ICS30L50N22POB2E1

    Inductive Proximity Sensor, M30 Stainless Steel, 2m PUR Cable, 22mm Range, Non-Flush, PNP NO Output, 8-60VDC, 200mA, Maximum Operating Frequency 0.3 kHz, Operating Temperature -40C to +85C, IP67-IP68-IP69K, 200 V/m Radiated Noise Immunity,

  • cg_ics30_long_nonflush_plug__70434.jpg

    Carlo Gavazzi

    ICS30L50N22POM1E1

    Inductive Proximity Sensor, M30 Stainless Steel, M12-Plug, 22mm Range, Non-Flush, PNP NO Output, 8-60VDC, 200mA, Maximum Operating Frequency 0.3 kHz, Operating Temperature -40C to +85C, IP67-IP68-IP69K, 200 V/m Radiated Noise Immunity, Load

  • Baumer_IF08.D02S-F16.UA1Z.7WCU_Primary.jpg

    Baumer

    IF08.D02S-F16.UA1Z.7WCU

    Inductive Distance Sensor, Subminiature, 12-30VDC, 0-2mm Measuring Distance Sd, Voltage Output, 0-10VDC, 2m PUR Cable, 8 x 16mm Rectangular Shape, Die-Cast Zinc Nickel Plated Housing, 10 to +60°C, IP67

  • Baumer_IF08.D02S-F16.UA1Z.7WLU_Primary.jpg

    Baumer

    IF08.D02S-F16.UA1Z.7WLU

    Inductive Distance Sensor, Flush, 12-30VDC, 0-2mm Measuring Distance Sd, Voltage Output, 0-10VDC, M8 PUR Flylead (200mm Length), 8 x 16mm Rectangular Shape, Die-Cast Zinc Nickel Plated Housing, 10 to +60°C, IP67

  • Baumer_IF08.D02S-F16.UA1Z.7WLV_Primary.jpg

    Baumer

    IF08.D02S-F16.UA1Z.7WLV

    Inductive Distance Sensor, Subminiature, Flush, 12-30VDC, 0-2mm Measuring Distance Sd, Voltage Output, 0-10VDC, M8 PVC Flylead Connector (200mm Length), 8 x 16mm Rectangular Shape, Die-Cast Zinc Nickel Plated Housing, 10 to +60°C, IP67, M8

  • Baumer_IF08.D02S-F16.UA1Z.7WMV_Primary.jpg

    Baumer

    IF08.D02S-F16.UA1Z.7WMV

    Inductive Distance Sensor, Subminiature, Flush, 12-30VDC, 0-2mm Measuring Distance Sd, Voltage Output, 0-10VDC, M5 PVC Flylead Connector (200mm Length), 8 x 16mm Rectangular Shape, Die-Cast Zinc Nickel Plated Housing, 10 to +60°C, IP67

  • Baumer_IF08.D03L-Q25.GP1I.7VCU_Primary.jpg

    Baumer

    IF08.D03L-Q25.GP1I.7VCU

    Inductive Distance Sensor, Quasi-Flush, Linearized, 8-30VDC, 0-3mm Measuring Distance Sd, PNP, Push-Pull, IO-Link, 2m PUR Cable, 8 x 24.6mm Rectangular Shape, Stainless Steel Housing, -20 tp +70°C, IP67

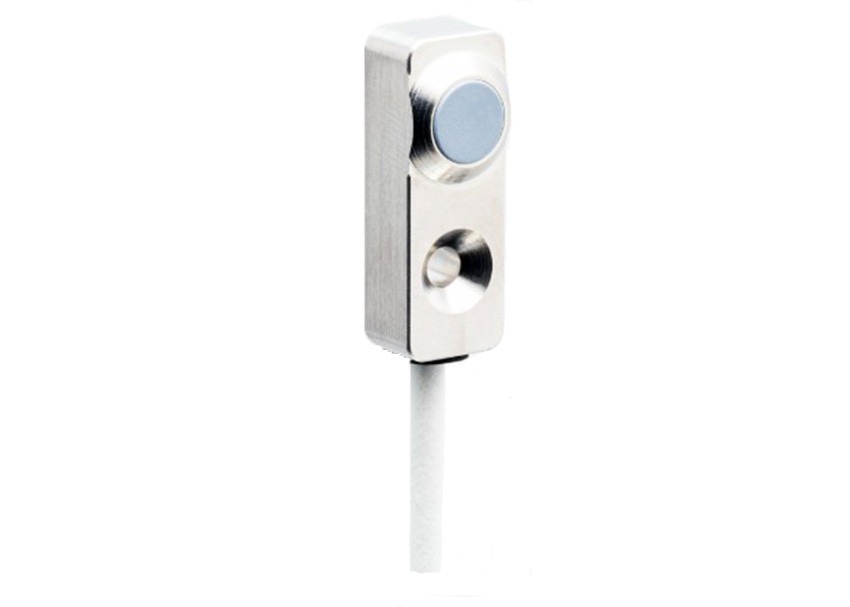

  • Baumer_IF08.D03L-Q25.UA1E.7VCU_Primary.jpg

    Baumer

    IF08.D03L-Q25.UA1E.7VCU

    Inductive Distance Sensor, Quasi-Flush, Linearized, 12-30VDC, 0-3mm Measuring Distance Sd, External Teach-in, Voltage Output, 0-10VDC, 2m PUR Cable, 8 x 24.6mm Rectangular Shape, Stainless Steel Housing, -20 tp +70°C, IP67

  • baumer_-_ifbr_-_a_-_inductive_prox_sensor__94475.jpg

    Baumer

    IFBR 06N13T1/S14L-9

    Inductive Proximity Sensor, Hygienic Design, Non-Flush, 6-30VDC, 3mm Nominal Sensing Distance, NPN, NO, M12 Connector, 6.5 x 55mm, Smooth Cylindrical Type, Stainless Steel 1.4404 (V4A); LSR Housing, LCP Sensing Face, 2-15% of Sr Hysteresis,

  • baumer_-_ifbr_-_a_-_inductive_prox_sensor_1__09773.jpg

    Baumer

    IFBR 06N33T1/S14L-9

    Inductive Proximity Sensor, Hygienic Design, Non-Flush, 6-30VDC, 3mm Nominal Sensing Distance, NPN, NC, M12 Connector, 6.5 x 55mm, Smooth Cylindrical Type, Stainless Steel 1.4404 (V4A); LSR Housing, LCP Sensing Face, 2-15% of Sr Hysteresis,

Proximity sensors detect the presence or absence of objects without any physical contact. Inductive proximity sensors require a metal target, capacitive can handle non-metal and liquids.
