FD-A300P

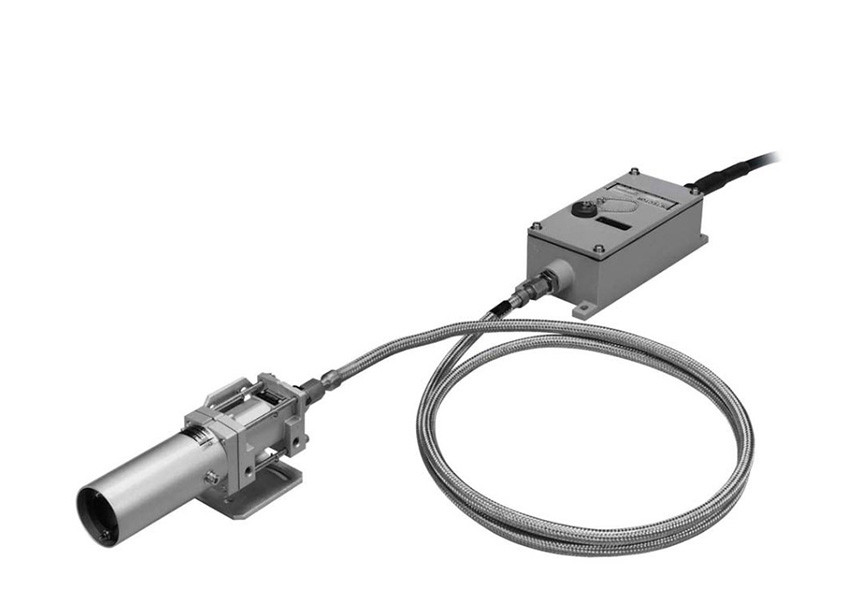

The Takex FD A300P Series provides accurate non contact detection of heated metal in steel production, forging operations, and other high temperature processes. These sensors evaluate the natural infrared energy emitted from heated materials through a fiber optic system, allowing reliable detection where standard photoelectric sensors cannot operate. The controller uses microcomputer processing to deliver stable performance, clear signal evaluation, and simplified setup for a broad range of industrial applications.

The FD A300P Series offers automatic and manual threshold modes, two selectable temperature ranges, and a numerical display that shows real time received light intensity for quick and repeatable adjustment. A recall function stores peak intensity readings to support diagnostics and process review. Multiple model variations are available so users can select the output style that best suits their control system.

Model Differences

• FD A300P uses a power relay output suitable for applications requiring higher switching capacity
• FD A300PC uses a signal relay output designed for low level control circuits
• FD A300PH uses a high speed solid state output for fast response applications
• FD A300PM uses a Photo MOS output that provides clean electronic switching for sensitive equipment

Key Features

• Non contact infrared detection of heated metal using a fiber optic sensing system
• Automatic threshold mode that adjusts to real time signal conditions for simple setup
• Manual threshold option for applications requiring custom switching levels
• Selectable low temperature and high temperature detection ranges
• Numerical display of received light intensity from 0.1 to 10.0 for easy tuning
• Recall memory that stores peak intensity readings for maintenance review
• Wide dynamic range for stable sensing across various temperature conditions
• Sensing performance optimized for heated materials larger than the optical field of view

Certifications and Ratings

• Typical protection rating of IP66 for resistance to dust and water exposure
• Factory calibrated for dependable infrared temperature evaluation
• Engineered for demanding industrial environments including steel and metal processing
• Meets Takex standards for high temperature infrared detection performance
