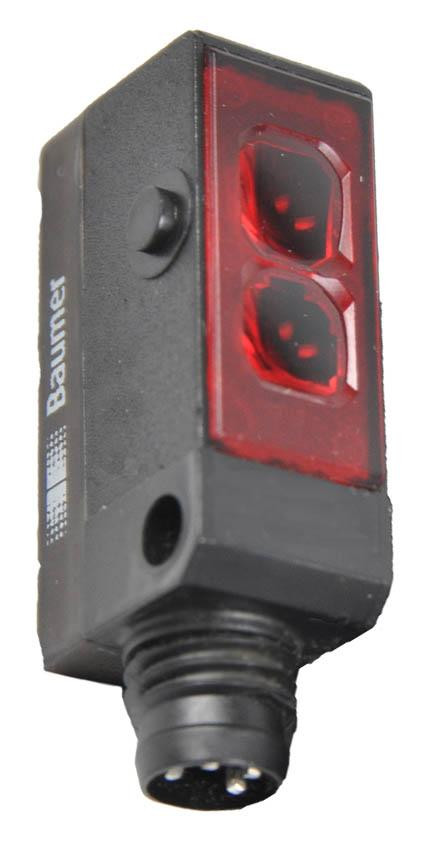

Baumer
FHDK 10G5122/S35A
Miniature Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 80mm ±8mm Range Tw, 10-30VDC, Light/Dark Operate, Push-Pull, <50mA, M8 4-Pin Connector, 27 x 10.4 x 14.7mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP67
$421.80$421.80 -
Baumer
FHDK 10N1101/KS35
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-120mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light Operate, NPN, <100mA, Flylead Connector M8 3-Pin, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C
$534.00$534.00 -
Baumer
FHDK 10N5101
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-120mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C, IP65
$517.00$517.00 -
Baumer
FHDK 10N5150
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-80mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP65
$526.80$526.80 -
Baumer
FHDK 10N5150/S35A
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-80mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, M8 4-Pin Connector, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C, IP
$508.81$508.81 -
Baumer
FHDK 10N5160/S35A
Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 10-30mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, M8 4-Pin Connector, 27 x 10.4 x 14mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP67
$694.00$694.00 -
Baumer
FHDK 10P5101
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-120mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C, IP65
$517.00$517.00 -
Baumer
FHDK 10P5150
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-80mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, 2m 4-Pin Cable, 27 x 10.4 x 14mm (HWD), Plastic (ASA) Housing, PMMA Optics, -25 to +65°C, IP65
$526.80$526.80 -
Baumer
FHDK 10P5150/S35A
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 20-80mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, M8 4-Pin Connector, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C, IP
$508.81$508.81 -
Baumer
FHDK 10P5160/S35A
Miniature Diffuse Sensor, Background Suppression, Pulsed Red LED, 10-30mm Range Tw, Mech. 5-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, M8 4-Pin Connector, 27 x 10.4 x 14mm (HWD), Plastic ASA Housing, PMMA Optics, -25 to +65°C, IP
$694.00$694.00 -
Baumer
FHDK 14N5101
Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 20-350mm Range Tw, Mechanical 10-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, 2m 4-Pin Cable, 43 x 14.8 x 32.7mm (HWD), Plastic Housing, PMMA Optics, -25 to +65°C, IP67
$421.80$421.80 -
Baumer
FHDK 14N5101/S14
Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 20-350mm Range Tw, Mech. 10-Turn Adj., 10-30VDC, Light/Dark Operate, NPN, <100mA, M12 4-Pin Connector, 43 x 14.8 x 31mm HWD, Plastic Housing, PMMA Optics, -25 to +65°C, IP67
$391.50$391.50
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
