Baumer
FHDK 14P6901/S35A
11001177
Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 40-200mm Range Tw, Teach-In Sensing Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, M8 4-Pin Connector, 43 x 14.8 x 31mm (HWD), Plastic Housing, PMMA Optics, -25 to +65°C, IP67
$508.40$508.40 -
Available Now!
Available Now!Baumer
FHDK 14P5104/S35A
11001171
Diffuse Sensor, Background Suppression (BGS), Pulsed Red LED, 30-500mm Range Tw, Mechanical 10-Turn Adj., 10-30VDC, Light/Dark Operate, PNP, <100mA, M8 4 Pin Connector, 43 x 14.8 x 31mm(HWD), Plastic Housing, PMMA Optics, -25 to +65°C, IP67
$343.60$343.60 -
Available Now!
Available Now!IDEC
SA2E-BP3C
Replacement for SA1E-BP1C and SA1E-BP2C
Miniature Photoelectric Sensor with Background Suppression (BGS), 10-350mm/20-350mm Adjustable Sensing Range, Red LED, PNP, Light On/Dark On (Selectable), M8 4-Pin Connector, IP67, 10.8 x 19.5 x 31.5mm (WDH) Excluding LEDs and Controls
$91.95$91.95 -

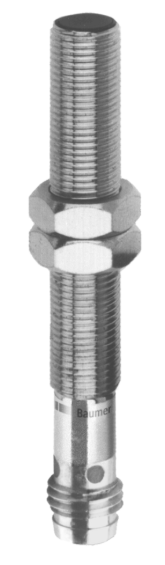

Baumer
FZAM 08P3002/S35L
10238053
Diffuse Reflective Sensor, Pulsed Infrared Diode, 10-30VDC, 80mm Sensing Distance Tw, No Adjustment, PNP, Dark Operate, M8 3-Pin Connector, Ø8 x 73mm, Nickel-Plated Brass, -25 to +65°C, IP65
$510.40$510.40 -
Available Now!
$355.29$355.29 -
Available Now!
Available Now!Autonics
BRQM400-DDTA-P
Sensor, Photo, Metal body, Diffuse reflective, 400mm Sensing Distance, Light & Dark On, PNP Output, 10-30 VDC
$78.00$78.00 -
Available Now!
Available Now!Pepperl+Fuchs
905778
ML17-54/115/136
Photoelectric Retroreflective Sensor with Polarization Filter, 10-30VDC, 3.5m Range, Light/Dark On, 2m Fixed Cable, 34.5 x 15mm, IP67
$118.72$118.72 -
Available Now!
Available Now!Takex
FA814
Limited Stock Savings: 7 units available at this price
Lens Unit for Fiber Optic Cables with M3, 0.5mm Pitch Threaded, Heat Resistant 200°C, Does Not Apply to Reflectives Types
$8.66$8.66 -
Available Now!
Available Now!Pepperl+Fuchs
267075-100526
OBT150-R101-2EP1-IO-V31, This is the Recommended Replacement for 182444 (ML6-8-H-120-RT/59/65A/95/136)
Photoelectric LED Triangulation Sensor with Background Suppression
$168.00$168.00 -
Available Now!
$367.36$367.36 -
Available Now!
Available Now!Carlo Gavazzi
VP01EP
Minimum Order is 5 Pieces, Price per Piece
Photoelectric Optical Level Sensor, PNP NC, DC Output, Polysulphone Housing
$154.51$154.51 -
Available Now!
Available Now!Pepperl+Fuchs
267075-100535
OBT60-R101-2P1-IO-V31, This is the Recommended Replacement for 182433 (ML6-8-H-60-RT/59/95/136) per Manufacturer
Photoelectric Sensor, BGS, 60mm Fixed Range, No User Adjustments, Visible Red LED Light Source, 10-30VDC, 2 4-in-1 Outputs Inverted, IO-Link, M8 4-pin Connector, Approvals: UL, c-UL, CE
$193.76$193.76
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
Additional Sensor Categories:
Proximity | Ultrasonic | Pressure | Temperature | Level | Tilt
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
