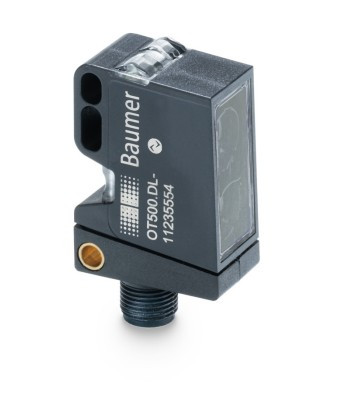

Baumer
OT500.DL-GLUBJ.72F
Photoelectric Distance Sensor-Version: Time of Flight, Measuring Distance 150...2500 mm, Teach-in and IO-Link, Pulsed Red Laser Diode, Output Circuit Push-Pull and Analog, 12...30 VDC, M12 Connector (5 Pin), IP67
$406.69$406.69 -
Baumer
OT500.GL-GLGLJ.72F
Diffuse Sensor With Background Suppression- Version Time of Flight, Sensing Distance 150...2500 mm, Teach-in and IO-Link, Pulsed Red Laser Diode, 12...30VDC, IP67
$355.29$355.29 -
Baumer
OT500.GL-NLNVB.72F
Diffuse Sensor With Background Suppression - Version Time of Flight, NPN, 150...2500 mm Sensing Distance, Pulsed Red Laser Diode, M12 Connector (5 Pin), 12...30VDC, IP67
$339.20$339.20 -
Baumer
OT500.GL-PLPLB.72F
Diffuse Sensor With Background Suppression- Version Time of Flight, 150...2500 mm, Teach-in via qTeach or Line Teach, Pulsed Red Laser Diode, 12...30VDC, PNP, M12 Connector (5 Pin), IP67
$339.20$339.20 -
Baumer
OT500.GL-PLPVB.72F
Diffuse Sensor With Background Suppression-Time of Flight Version, Sensing Distance 150...2500 mm, Pulsed Red Laser Diode, 12...30VDC, PNP, Teach-in via qTeach of Line Teach, IP67
$339.20$339.20 -
Baumer
OT500.SL-GDGQJ.72F
SmartReflect Light Barrier-For Longer Ranges, Safe Barrier Principal without Reflector, Background Position Sde 500...2500 mm, Pulsed Red Laser Diode, 12...30VDC, Output Circuit Push-Pull / IO-Link, M12 Connector (5 Pin), IP67
$355.29$355.29 -
Baumer
OT500.SL-NDNVB.72F
SmartReflect Light Barrier-For Longer Ranges, Background Position Sde 500...2500 mm, Pulsed red Laser Diode, 12...30VDC, NPN, M12 Connector (5 Pin), IP67
$339.20$339.20 -
Baumer
OT500.SL-PDPVB.72F
SmartReflect Light Barrier-For Longer Ranges, Background Position Sde 500...2500 mm, Pulsed Red Laser Diode, 12...30VDC, PNP, M12 Connector (5 Pin), IP67
$339.20$339.20 -
Baumer
OXH7-Z0500.HI0660.VI
Light Section Sensor, Pulsed Red Laser Diode, 660nm, 15-28VDC, 13-66mm Width/100-5000mm Distance Measuring Range, 1540Hz, Touch Display, RS485 Adjustment, M12 8-Pin Connector, Aluminum Housing, Glass Front (Optics), -10 to +50°C Operating T
$6,601.60$6,601.60 -
Baumer
OZDK 10N5101
Diffuse Contrast Sensor-Miniature, 3...150 mm Sensing Distance, Pulsed Red Laser Diode, NPN, 5 Turn Potentiometer, 2 Meter Cable (4 Pin), IP 65
$966.60$966.60 -

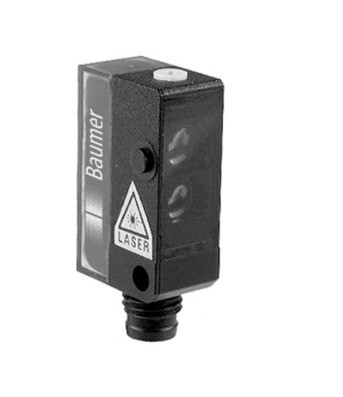

Baumer
OZDK 10N5101/S35A
Diffuse Contrast Sensor-Miniature, 3...150 mm Sensing Distance, Pulsed Red Laser Diode, NPN, 5 Turn Potentiometer, M8 Connector (4 Pin), IP 67
$954.60$954.60 -
Baumer
OZDK 10N5150
Diffuse Contrast Sensor-Miniature, 3...150 mm Sensing Distance, Pulsed Red Laser Diode, NPN, 5 Turn Potentiometer, 2 Meter Cable (4 Pin), IP 65
$1,123.40$1,123.40
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
