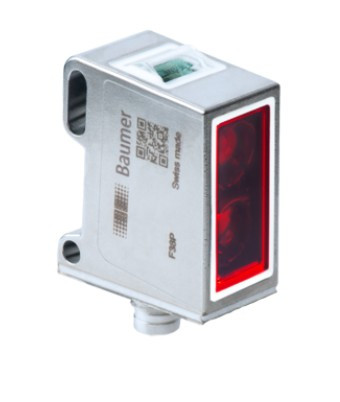

Baumer
O300W.EL-GW1B.PVN
Through Beam Sensor-Washdown, Receiver, 40 Meter Sensing Distance, Push-Pull Output Circuit, qTeach/Remote, Connector M8 (4 Pin), IP 68/69K & proTect+
$197.69$197.69 -
Baumer
O300W.ER-GW1B.PVN
Through Beam Sensor-Washdown, Receiver, 10 Meter Sensing Distance, Push-Pull Output Circuit, qTeach/Remote, M8 Connector (4 Pin), IP 68/69K & proTect+
$197.69$197.69 -
Baumer
O300W.GL-GW1J.PVN
Diffuse Sensor With Background Suppression-Washdown, 30...250 mm Sensing Distance, Pulsed Red Laser Diode, Teach-in and IO-Link, Push-Pull Output Circuit, M8 Connector (4 Pin), IP 69/69K & proTect+
$422.80$422.80 -
Baumer
O300W.GP-GW1J.PVN
Diffuse Sensor With Background Suppression-Washdown, 30...200 mm Sensing Distance, Pulsed PinPoint LED, Push-Pull Output Circuit, Teach-in and IO-Link, M8 Connector (4 Pin), IP 68/69K & proTect+
$363.29$363.29 -
Baumer
O300W.RL-GW1J.PVN
Retro-Reflective Sensor-Washdown, 5 Meter Sensing Distance, Pulsed Red Laser Diode, Push-Pull Out Circuit, Teach-in and IO-Link, M8 Connector (4 Pin), IP 68/69K & proTect+
$393.89$393.89 -
Baumer
O300W.RP-GW1B.PVN
Retro-Reflective Sensor-Washdown, 2 Meter Sensing Distance, Pulsed PinPoint LED, Push-Pull Output Circuit, qTeach/Remote, M8 Connector (4 Pin), IP 68/69k & proTect+
$258.80$258.80 -
Baumer
O300W.RP.T-GW1J.PVN
Photoelectric Retro-Reflective Sensor-Washdown, 3.5 Meter Sensing Distance, Pulsed PinPoint LED, Push-Pull Output Circuit, Teach-in and IO-Link, M8 Connector (4 Pin), IP 68/69K & proTect+
$302.20$302.20 -
Baumer
O300W.SL-GW1J.PVN
SmartReflect Light Barrier-Washdown, 30...250 mm Sensing Distance, Pulsed Red Laser Diode, Teach-in and IO-Link, M8 Connector (4 Pin), IP 68/69K & proTect+
$422.80$422.80 -
Baumer
O300W.SP-GW1J.PVN
SmartReflect Light Barrier-Washdown, 30...300mm Sensing Distance, Pulsed PinPoint LED, Push-Pull Output Circuit, Teach-in and IO-Link, M8 Connector (4 Pin), IP 68/69K & proTect+
$363.29$363.29 -
Baumer
O300W.SP.T-GW1J.PVN
SmartReflect Light Barrier-Washdown, 30...300 mm Sensing Distance, Pulsed PinPoint LED, Push-Pull Output Circuit, Teach-in and IO-Link, M8 Connector (4 Pin), IP 68/69K & proTect+
$393.89$393.89 -
Baumer
O300W.TL-ZZZZ.PVN
Photoelectric Through Beam Sensor-Washdownn, Emitter, 40 Meter Sensing Distance, Pulsed Red Laser Diode, M8 Connector (4 Pin), IP 68/69K & proTect+
$332.80$332.80 -
Baumer
O300W.TR-ZZZZ.PVN
Photoelectric Through Beam Sensor-Washdown, Emitter, 10 Meter Sensing Distance, Pulsed Red LED, M8 Connector (4 Pin), IP 68/69K & proTect+
$183.29$183.29
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
