Baumer
O500H.RP.T-GW1J.PVOV
Retroreflective Sensor, Polarization Filter, Hygienic Design, Transparent Object Detection, 10-30VDC, 5.5 Actual Range Sb, 6m Nominal Range Sn, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 Flylead Co
$423.50$423.50 -
Baumer
O500H.SP-GW1J.PVCV
SmartReflect Light Barrier, Hygienic Design, Standard Object Detection, 10-30VDC, 60-600mm Background Position Sde, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, 2m 4-Pin Cable, Stainless Steel Housing, P
$430.90$430.90 -
$520.00$520.00 -
Baumer
O500H.SP-GW1J.PVOV
SmartReflect Light Barrier, Hygienic Design, Standard Object Detection, 10-30VDC, 60-600mm Background Position Sde, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 Flylead Connector (300mm Length), Stai
$505.00$505.00 -
$538.00$538.00 -
Baumer
O500H.SP.T-GW1J.PVCV/B005
SmartReflect Light Barrier, Hygienic Design, Transparent Object Detection, 10-30VDC, 60-1000mm Background Position Sde, Pulsed PinPoint LED, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, 2m 4-Pin Cable, Stainless Steel Housing, PMMA
$520.00$520.00 -
Baumer
O500H.SP.T-GW1J.PVOV/B005
SmartReflect Light Barrier, Hygienic Design, Transparent Object Detection, 10-30VDC, 60-1000mm Background Position Sde, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 Flylead Connector (300mm Length),
$538.00$538.00 -
Baumer
O500H.TR-ZZZZ.PVCV
Thru-Beam Sensor, Emitter, 10-30VDC, 25m Actual Range Sb, 40m Nominal Range Sn, Pulsed Red LED, 645 nm, 2m 4-Pin Cable, Stainless Steel Housing, PMMA Optics, 47.7 x 20.2 x 36.4mm (HWD), -25 to +60°C Operating Temp., IP68/69K & proTect+
$292.70$292.70 -
Baumer
O500H.TR-ZZZZ.PVOV
Thru-Beam Sensor, Emitter, 10-30VDC, 25m Actual Range Sb, 40m Nominal Range Sn, Pulsed Red LED, 645 nm, M12 Flylead Connector (200mm Length), Stainless Steel Housing, PMMA Optics, 47.7 x 20.2 x 36.4mm (HWD), -25 to +60°C Operating Temper
$310.80$310.80 -

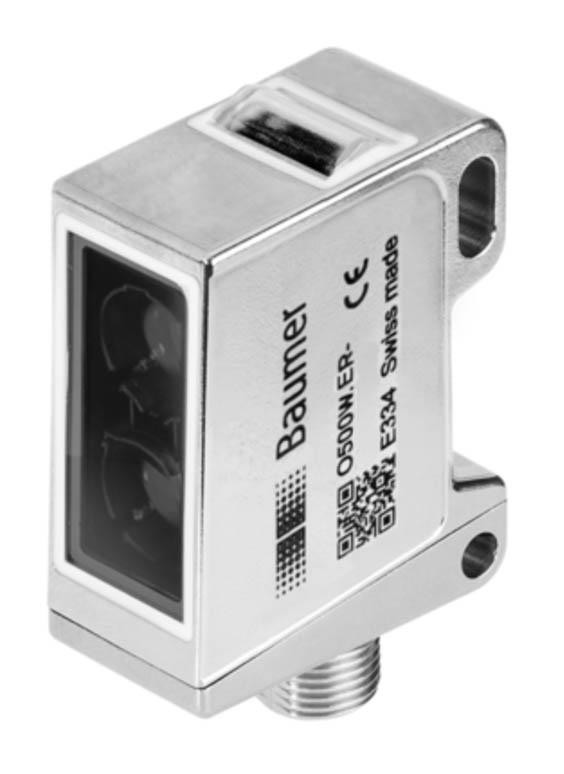

Baumer
O500W.ER-GW1B.PVO
Thru-Beam Sensor, Receiver, Washdown Design, 10-30VDC, 25m Actual Range Sb, 40m Nominal Range, Push-Pull, qteach/Remote, Light/Dark Operate, M12 4-Pin Connector, Stainless Steel Housing, PMMA Optics, 47.2 x 20.2 x 37.7mm (HWD), -25 to 60
$227.20$227.20 -
Baumer
O500W.GP-GW1J.PVO
Diffuse Sensor, Background Suppression, Washdown Design, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 4-Pin Connector, Stainless Steel Housi
$407.10$407.10 -
Baumer
O500W.GP-GW1J.PVO/H002
Diffuse Sensor, Background Suppression, Washdown Design, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 4-Pin Connector, Stainless Ste
$407.10$407.10
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
