$363.50$363.50 -
Baumer
O500.SP-NV1T.72CU
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, NPN, qTeach, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x18 x32mm (HWD), -25 to 60°C Operating Temperature. IP67
$325.40$325.40 -
Baumer
O500.SP-NV1T.72CU/T003
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, NPN, qTeach/1-Step Teach-In, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25 to 60°C Operating
$325.40$325.40 -
Baumer
O500.SP-NV1T.72O
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, NPN, qTeach, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD) -25 to 60°C Operating Temp., IP67
$305.40$305.40 -
Baumer
O500.SP-NV1T.72O/T003
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, NPN, qTeach/1-Step Teach-In, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25 to 60°C Oper
$305.40$305.40 -
Baumer

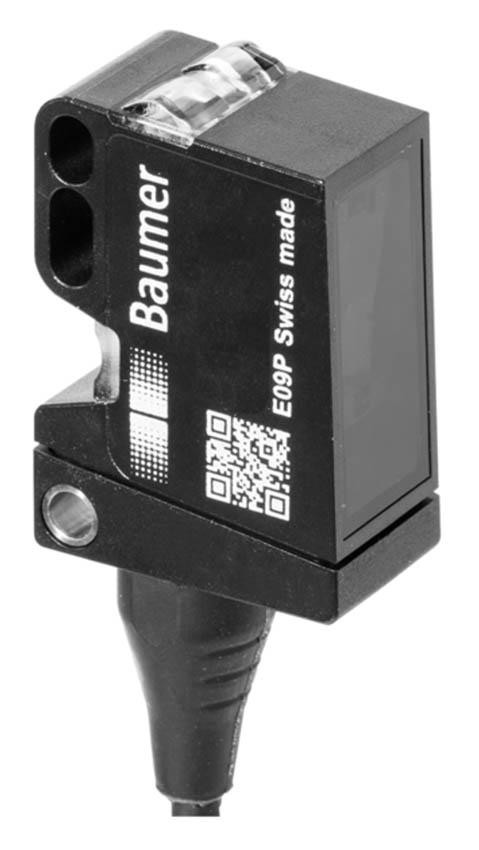

O500.SP-PV1T.72CU
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, PNP, qTeach, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x18 x32mm (HWD), -25 to 60°C Operating Temperature. IP67
$325.40$325.40 -
Baumer
O500.SP-PV1T.72CU/T003
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, PNP, qTeach/1-Step Teach-In, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25 to 60°C Operating
$325.40$325.40 -
Baumer

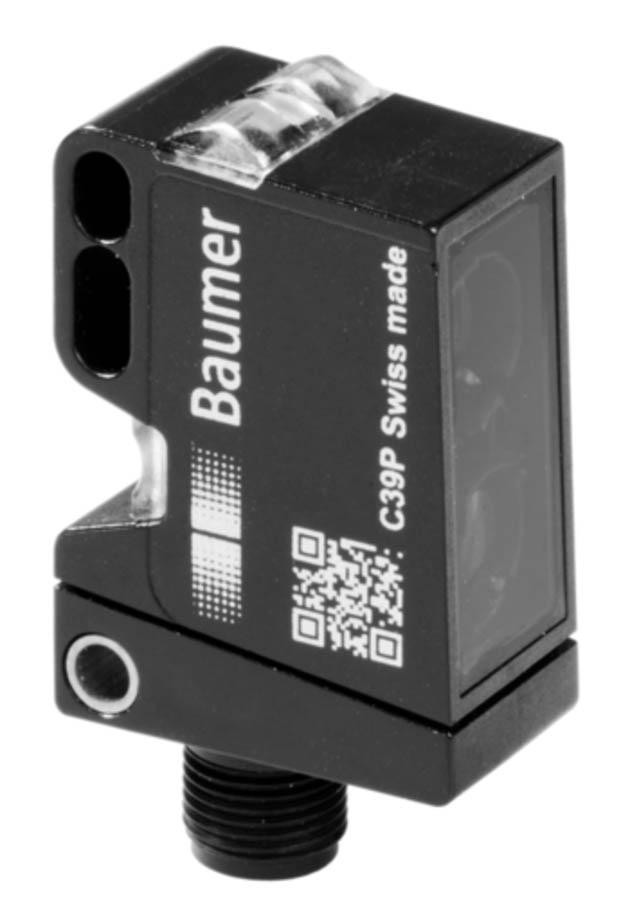

O500.SP-PV1T.72O
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, PNP, qTeach, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD) -25 to 60°C Operating Temp., IP67
$305.40$305.40 -
Baumer
O500.SP-PV1T.72O/T003
SmartReflect Light Barrier, 10-30VDC, 60-600mm Background Position Side, Pulsed PinPoint LED, 630 nm, PNP, qTeach/1-Step Teach-In, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25 to 60°C Oper
$305.40$305.40 -
Baumer
O500.SP.T-GW1J.72CU/B005
SmartReflect Light Barrier, Transparent Object Detection, 10-30VDC, 60-1000mm Background Position Sde, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x
$381.70$381.70 -
Baumer
O500.SP.T-GW1J.72O/B005
SmartReflect Light Barrier, Transparent Object Detection, 10-30VDC, 60-1000mm Background Position Sde, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x
$363.50$363.50 -
Baumer
O500.TR-ZZZZ.72CU
Thru-Beam Sensor, Emitter, 10-30VDC, 25m Actual Range Sb, 40m Nominal Range, Pulsed Red LED, 645 nm, 2m 4-Pin Cable, Plastic Housing, PMMA Front (Optics), 45 x 18 x 32mm (HWD), -25 to 60°C Operating Temperature, IP67
$114.50$114.50
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
