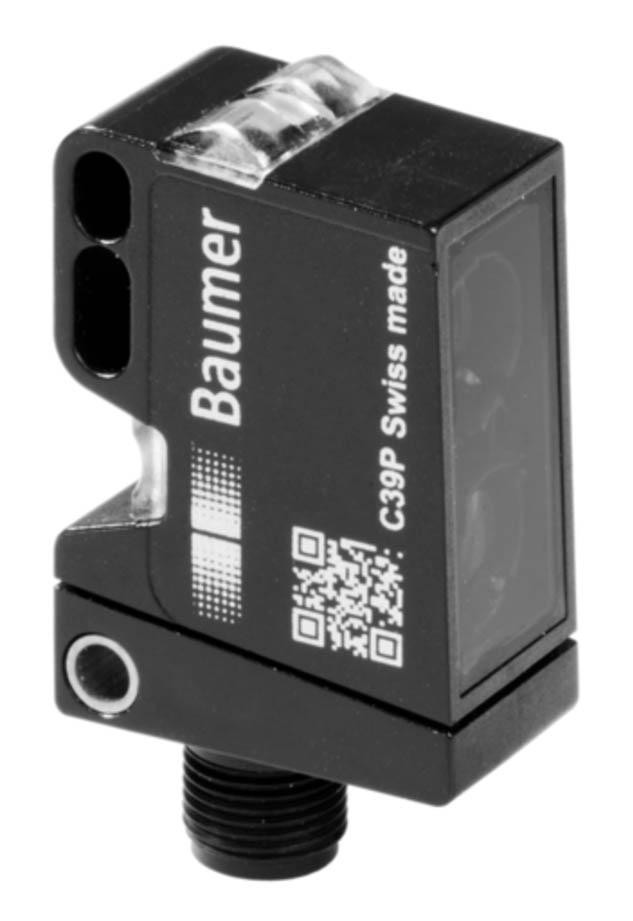

Baumer
O500.GP-NV1T.72CU/T003
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, NPN, qTeach/1-Step Teach-In, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x
$325.40$325.40 -
Baumer
O500.GP-NV1T.72O
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, NPN, qTeach, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD)
$305.40$305.40 -
Baumer
O500.GP-NV1T.72O/T003
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, NPN, qTeach/1-Step Teach-In, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x
$305.40$305.40 -
Baumer
O500.GP-PV1T.72CU
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, PNP, qTeach, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25
$325.40$325.40 -
Baumer
O500.GP-PV1T.72CU/T003
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, PNP, qTeach/1-Step Teach-In, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x
$325.40$325.40 -
Baumer
O500.GP-PV1T.72O
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, PNP, qTeach, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD)
$305.40$305.40 -
Baumer
O500.GP-PV1T.72O/T003
Diffuse Sensor, Background Suppression, 10-30VDC, 60-400mm Sensing Distance Tw, 30-400mm Sensing Range Tb, Pulsed PinPoint LED, 630 nm, PNP, qTeach/1-Step Teach-In, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x
$305.40$305.40 -
Baumer
O500.GR-GW1T.72CU
Diffuse Sensor, Background Suppression, 10-30VDC, 60-550mm Sensing Distance Tw, 30-600mm Sensing Range Tb, Pulsed Red LED, 630 nm, Push-Pull, qTeach, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -2
$249.00$249.00 -
Baumer
O500.GR-NV1T.72CU
Diffuse Sensor, Background Suppression, 10-30VDC, 60-550mm Sensing Distance Tw, 30-600mm Sensing Range Tb, Pulsed Red LED, 630 nm, NPN, qTeach, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25 to 6
$249.00$249.00 -
Baumer
O500.GR-NV1T.72CU/T003
Diffuse Sensor, Background Suppression, 10-30VDC, 60-550mm Sensing Distance Tw, 30-600mm Sensing Range Tb, Pulsed Red LED, 630 nm, NPN, qTeach/1-Step Teach-In, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housing, PMMA Optics, 45 x 18 x 32mm
$249.00$249.00 -
Baumer
O500.GR-NV1T.72O
Diffuse Sensor, Background Suppression, 10-30VDC, 60-550mm Sensing Distance Tw, 30-600mm Sensing Range Tb, Pulsed Red LED, 630 nm, NPN, qTeach, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x 32mm (HWD), -25
$229.00$229.00 -
Baumer
O500.GR-NV1T.72O/T003
Diffuse Sensor, Background Suppression, 10-30VDC, 60-550mm Sensing Distance Tw, 30-600mm Sensing Range Tb, Pulsed Red LED, 630 nm, NPN, qTeach/1-Step Teach-In, Light/Dark Operate, M12 4-Pin Connector, Plastic Housing, PMMA Optics, 45 x 18 x
$229.00$229.00
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
