Available Now!
Available Now!Takex
NA-R10
Photoelectric Sensor, Power Supply, Diffuse, Reflective, Relay, IP66, Terminal Block, 1M, Range
$123.25$123.25 -
Available Now!
Available Now!Takex
NA-R10F
Diffuse Reflective Sensor, 24-240VAC/DC ±10% 50/60Hz Power Supply, 1m or Less Range (200x200mm White Drawing Paper), Opaque Translucent Detection Object, Relay Output 1a, Light ON/Dark ON Selectable, Timer Function Selectable, Delay Time: 0
$133.88$133.88 -
Pepperl+Fuchs
267075-100526
Photoelectric LED Triangulation Sensor with Background Suppression, Non-Cancellable, No Returns
$163.52$163.52 -
Available Now!

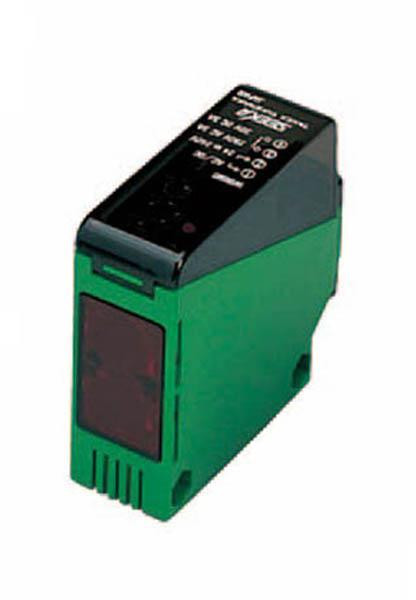

Available Now!Takex
NA-M7RF
Polarized Retroreflective Sensor, 24-240VAC/DC Power Supply, 0.03 to 7mm Range, Mirror-Like Opaque Detection, Relay Ouput 1a, Light ON/Dark ON Selectable, Timer Function Selectable, Delay Time: 0.1-5 s, Terminal Block (M3.5 Screw), IP66
$136.85$136.85 -
Available Now!
$123.20$123.20 -
Available Now!
Available Now!Takex
NA-M7R
Photoelectric Polarized Retroreflective Sensor, 24-240VAC/DC Power Supply, 0.03 to 7m Range, Mirror-Like Opaque Detection, Relay Output 1a, Light ON/Dark ON Selectable, No Timer, Terminal Block (M3.5 Screw), IP66
$126.65$126.65 -
Autonics
BRQM400-DDTA-P
Sensor, Photo, Metal body, Diffuse reflective, 400mm Sensing Distance, Light & Dark On, PNP Output, 10-30 VDC
$100.10$100.10 -
Available Now!
$48.16$48.16 -
Available Now!
Available Now!Pepperl+Fuchs
267075-0069
Photoelectric, DC, Background Suppression, LED, 5 … 350 mm, M12 Quick Disconnect with 300mm Cable
$159.04$159.04 -
Available Now!
Available Now!Baumer
FHDK 07P6901/KS35A
Subminiature Diffuse Sensor, Background Suppression, Pulsed Red LED, 10-60mm Range Tw, 10-30VDC, Light/Dark Operate, PNP, <100mA, Flylead Connector M8 4-Pin 200mm Length, 16.2 x 8 x 10.8mm (HWD), Plastic Housing, PMMA Optics, -20 to +50°C,
$442.50$442.50 -
Pepperl+Fuchs
267075-100028
Photoelectric, DC, Clear Object Retro, LED, 0 … 5 m, M8 Quick Disconnect
$179.20$179.20 -
Available Now!
Available Now!Carlo Gavazzi
VP01EP
Photoelectric Optical Level Sensor, PNP NC, DC Output, Polysulphone Housing
$155.37$155.37
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
