$272.69$272.69 -
Carlo Gavazzi
EP1820PPAS-1
Minimum Order 5 Pieces, Price per Piece
Photoelectric Polarized Retroreflective Sensor, Red Polarized Modulated Light 660nm, 270° Single Turn Potentiometer, 10-40VDC Power Supply, 2m Range, PNP Output, NO/NC, Light and Dark Switching, M12 Quick Disconnect Plug, IP67
$178.61$178.61 -
$272.69$272.69 -
Baumer
O500.RP.T-GW1J.72O
11157351
Retroreflective Sensor, Polarization Filter, Transparent Object Detection, 10-30VDC, 5.5m Actual Range Sb, 6m Nominal Range Sn, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, M12 4-Pin Connector, Plastic H
$213.80$213.80 -
$374.40$374.40 -
$289.69$289.69 -
Baumer
O500.RP.T-GW1J.72CU
11157339
Retroreflective Sensor, Polarization Filter, Transparent Object Detection, 10-30VDC, 5.5m Actual Range Sb, 6m Nominal Range Sn, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In and IO-Link, Light/Dark Operate, 2m 4-Pin Cable, Plastic Housin
$231.49$231.49 -
$359.00$359.00 -

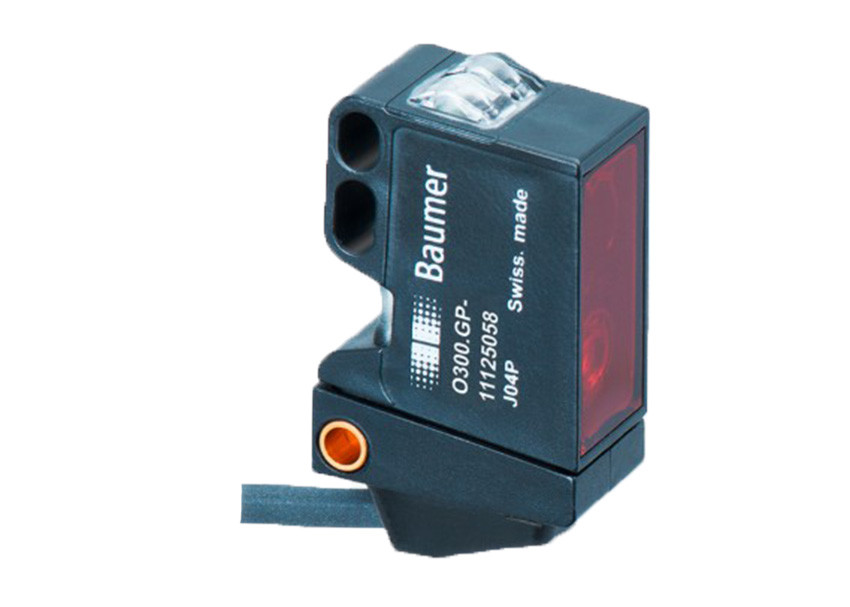

Baumer
O300.RR-GL1Z.72CU
11120114
Retroreflective Sensor, Polarization Filter, Pulsed Red LED, 10-30VDC, 4m Actual Range Sb, No Adjustment, Push-Pull, Light Operate, 2m 4-Pin Cable, 12.9 x 32.3 x 23mm (WxHxD), Plastic (ASA/PMMA), -25 to +60°C, IP67
$133.80$133.80 -
$289.69$289.69 -
Baumer
O500H.RP-GW1B.PVOV
11107832
Retroreflective Sensor, Polarization Filter, Hygienic Design, 10-30VDC, 7.5 Actual Range Sb, 8m Nominal Range Sn, Pulsed PinPoint LED, 630 nm, Push-Pull, Teach-In: Remote, Light/Dark Operate, M12 Flylead Connector (300mm Length), Stainless
$348.89$348.89 -
Baumer
O300.RR-GD1Z.72CU
11120118
Retroreflective Sensor, Polarization Filter, Pulsed Red LED, 10-30VDC, 4m Actual Range Sb, No Adjustment, Push-Pull, Dark Operate, 2m 4-Pin Cable, 12.9 x 32.3 x 23mm (WxHxD), Plastic (ASA/PMMA), -25 to +60°C, IP67
$133.80$133.80
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
Additional Sensor Categories:
Proximity | Ultrasonic | Pressure | Temperature | Level | Tilt
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
