Baumer
FPDK 10N5135
Retroreflective Sensor, Miniature, Pulsed Red LED, 10-30VDC, 3.5m Actual Range Sb, 4m Nominal Range Sn, Potentiometer, 240°, NPN, Light/Dark Operate, 2m 4-Pin Cable, 27 x 10.4 x 16.3mm (HWD), Plastic ASA Housing, PMMA Optics, -20° to +65°C,
$293.60$293.60 -
Baumer
FPDK 10P5130
Retroreflective Sensor, Miniature, Pulsed Red LED, 10-30VDC, 3.5m Actual Range Sb, 4m Nominal Range Sn, PNP, Light/Dark Operate, 2m 4-Pin Cable, 27 x 10.4 x 16.3mm (HWD), Plastic (ASA) Housing, PMMA Optics, -20° to +65°C, IP65
$284.30$284.30 -
$351.90$351.90 -
Baumer
FPDK 10P5135
Retroreflective Sensor, Miniature, Pulsed Red LED, 10-30VDC, 3.5m Actual Range Sb, 4m Nominal Range Sn, Potentiometer, 240°, PNP, Light/Dark Operate, 2m 4-Pin Cable, 27 x 10.4 x 16.3mm (HWD), Plastic ASA Housing, PMMA Optics, -20° to +65°C,
$293.60$293.60 -
Baumer
FPDK 14N5101
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 7m Actual Range Sb, 7.2m Nominal Range Sn, NPN, Light/Dark Operate, 2m 4-Pin Cable, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$279.60$279.60 -
Baumer
FPDK 14N5101/S14
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 7m Actual Range Sb, 7.2m Nominal Range Sn, NPN, Light/Dark Operate, M12 4-Pin Connector, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$258.70$258.70 -
Baumer

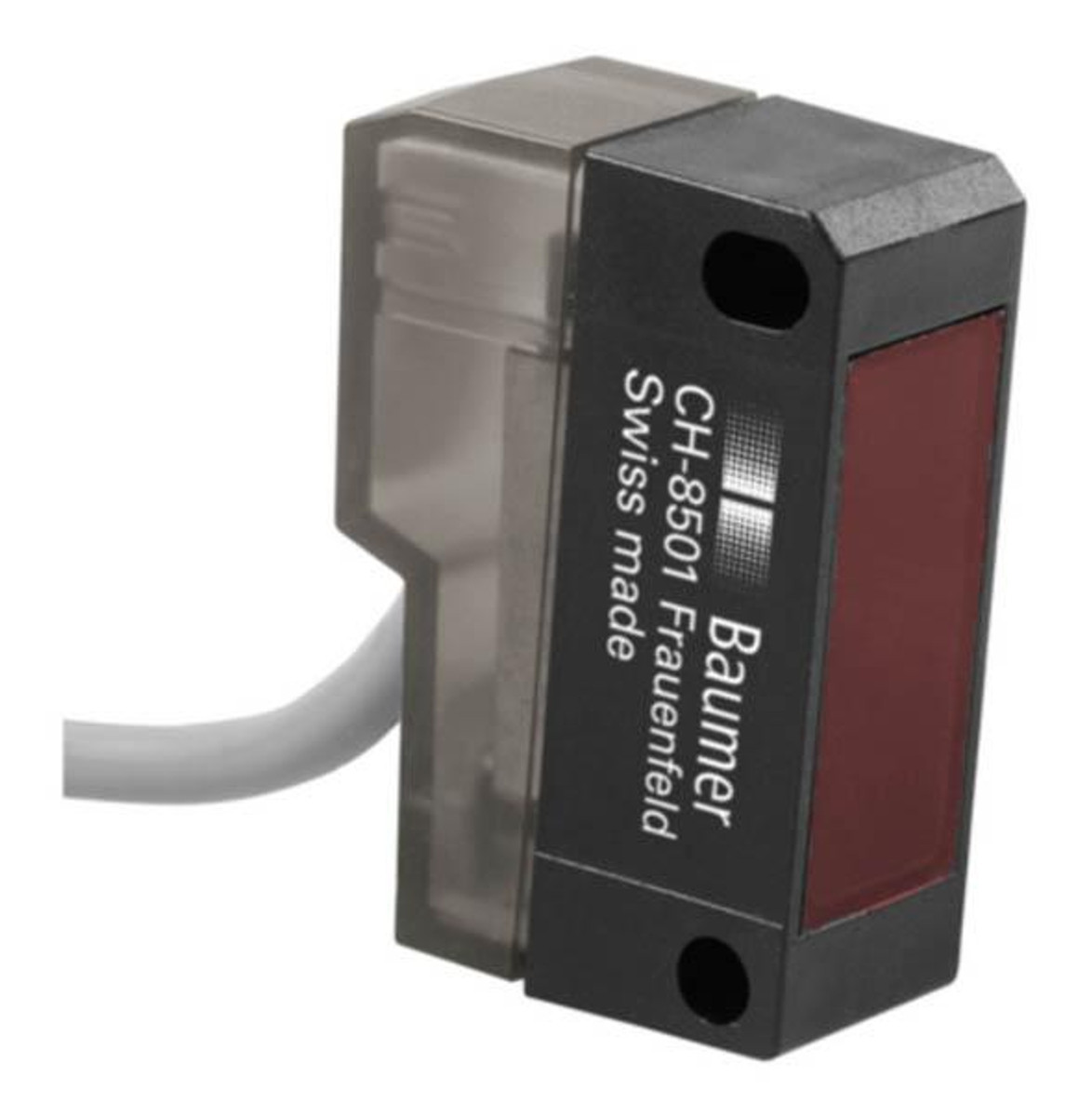

FPDK 14N5111
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 3.8m Nominal Range Sn, NPN, Light/Dark Operate, 2m 4-Pin Cable, 43 x 14.8 x 31mm HWD Rectangler, Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$527.00$527.00 -
Baumer
FPDK 14N5111/S14
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 3.8m Nominal Range Sn, NPN, Light/Dark Operate, M12 4-Pin Connector, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$513.00$513.00 -
Baumer
FPDK 14N5111/S35A
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 3.8m Nominal Range Sn, NPN, Light/Dark Operate, M8 4-Pin Connector, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$513.00$513.00 -
Baumer
FPDK 14P5101
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 7m Actual Range Sb, 7.2m Nominal Range Sn, PNP, Light/Dark Operate, 2m 4-Pin Cable, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$279.60$279.60 -
Baumer
FPDK 14P5101/S14
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 7m Actual Range Sb, 7.2m Nominal Range Sn, PNP, Light/Dark Operate, M12 4-Pin Connector, 43 x 14.8 x 31mm (HWD), Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$258.70$258.70 -
Baumer
FPDK 14P5111
Retroreflective Sensor, Standard, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 3.8m Nominal Range Sn, PNP, Light/Dark Operate, 2m 4-Pin Cable, 43 x 14.8 x 31mm HWD Rectangle, Plastic (ASA, MABS) Housing, PMMA Optics, -20° to +65°C, IP67
$527.00$527.00
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
