Baumer
FPAM 18N3151/S14
Retroreflective Sensor, Polarization Filter, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 4m Nominal Range Sn, NPN, Dark Operate, M12 4-Pin Connector, 18 x 67mm WH, Cylindrical Threaded, Brass Nickel Plated/PC Housing, PMMA Optics, -25 t
$382.20$382.20 -
Baumer
FPAM 18P3151
Retroreflective Sensor, Polarization Filter, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 4m Nominal Range Sn, PNP, Dark Operate, 2m 3-Pin Cable, 18 x 57mm WH, Cylindrical Threaded, Brass Nickel Plated/PC Housing, PMMA Optics, -25 to +55
$407.80$407.80 -
Baumer
FPAM 18P5151/S14
Retroreflective Sensor, Polarization Filter, Pulsed Red LED, 10-30VDC, 3.2m Actual Range Sb, 4m Nominal Range Sn, PNP, Dark Operate, M12 4-Pin Connector, 18 x 67mm WH, Cylindrical Threaded, Brass Nickel Plated/PC Housing, PMMA Optics, -25 t
$456.70$456.70 -

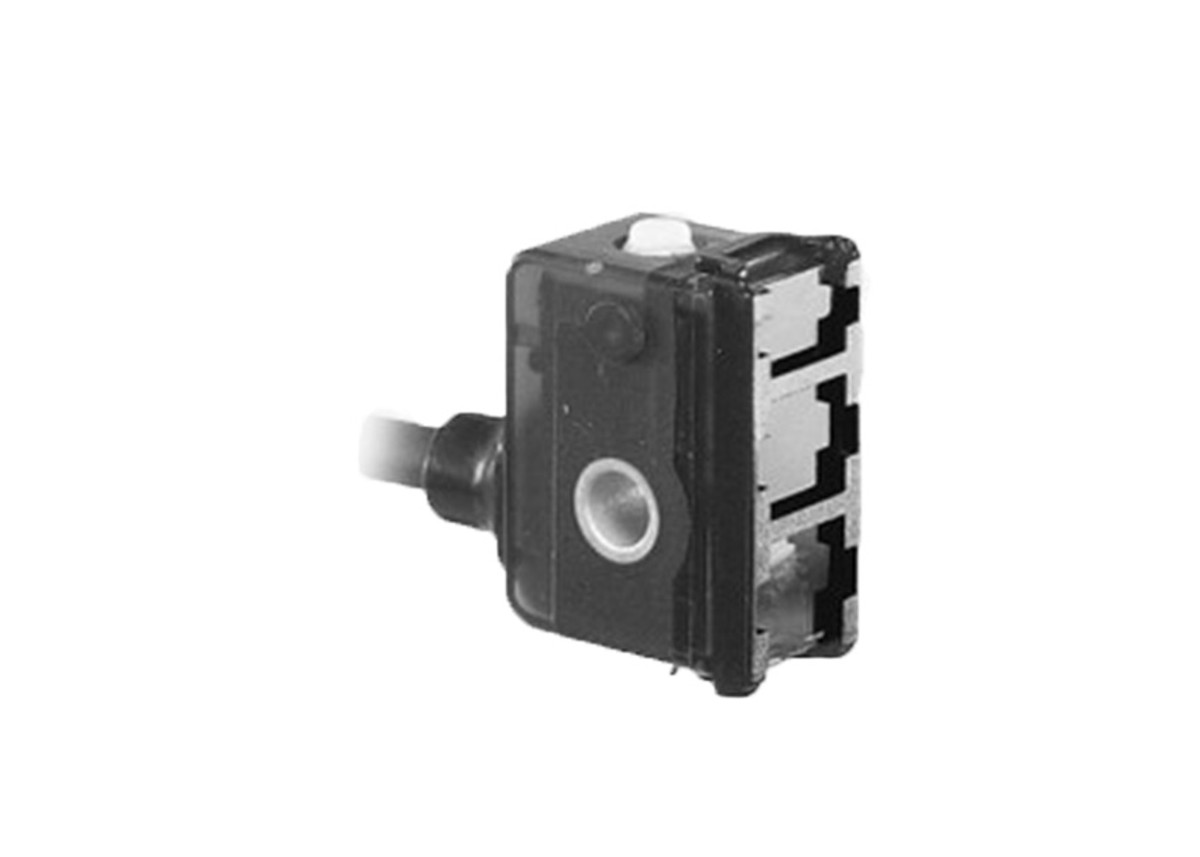

Baumer
FPCK 07N6901
Retroreflective Sensor, Polarization Filter, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range, Teach-in, NPN, Light/Dark Operate, 2m Cable Rear Side, 17.8 x 8 x 12.6mm Rectangular HWD, Plastic Housing, PMMA O
$317.10$317.10 -
Baumer
FPCK 07N6901/KS35A
Retroreflective Sensor, Polarization Filter, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range, Teach-in, NPN, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm Rectangular HWD,
$328.90$328.90 -
Baumer
FPCK 07P6901
Retroreflective Sensor, Polarization Filter, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range, Teach-in, PNP, Light/Dark Operate, 2m Cable Rear Side, 17.8 x 8 x 12.6mm Rectangular HWD, Plastic Housing, PMMA O
$317.10$317.10 -
Baumer
FPCK 07P6901/KS35A
Retroreflective Sensor, Polarization Filter, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range, Teach-in, PNP, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm Rectangular HWD,
$328.90$328.90 -
Baumer
FPDK 07N6901
Retroreflective Sensor, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range Sn, Teach-in, NPN, Light/Dark Operate, 2m Cable Bottom Side, 17.8 x 8 x 12.6mm HWD, Plastic Housing, PMMA Optics, -20° to +50°C, IP65
$317.10$317.10 -
Baumer
FPDK 07N6901/KS35A
Retroreflective Sensor, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range Sn, Teach-in, NPN, Light/Dark Operate, M8 4-Pin Flylead Connector (200mm Length), 17.8 x 8 x 12.6mm HWD, Plastic Housing, PMMA Optics,
$328.90$328.90 -

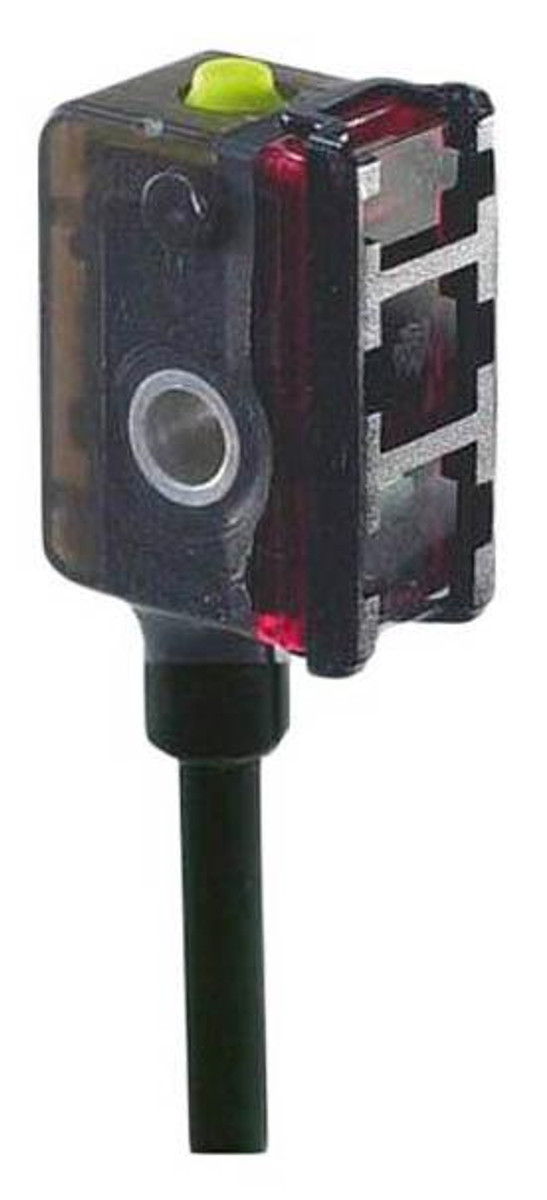

Baumer
FPDK 07P6901
Retroreflective Sensor, Subminiature, Pulsed Red LED, 10-30VDC, 0.6m Actual Range Sb, 0.8m Nominal Range Sn, Teach-in, PNP, Light/Dark Operate, 2m Cable Bottom Side, 17.8 x 8 x 12.6mm HWD, Plastic Housing, PMMA Optics, -20° to +50°C, IP65
$317.10$317.10 -
Baumer
FPDK 10N5130
Retroreflective Sensor, Miniature, Pulsed Red LED, 10-30VDC, 3.5m Actual Range Sb, 4m Nominal Range Sn, NPN, Light/Dark Operate, 2m Cable, 27 x 10.4 x 16.3mm HWD Rectangular, Plastic (PMMA) Housing, PMMA Front (Optics), -20° to +65°C, IP65
$284.30$284.30 -
Baumer
FPDK 10N5130/S35A
Retroreflective Sensor, Miniature, Pulsed Red LED, 10-30VDC, 3.5m Actual Range Sb, 4m Nominal Range Sn, NPN, Light/Dark Operate, M8 4-Pin Connector, 27 x 10.4 x 16.3mm (HWD), Plastic (ASA) Housing, PMMA Optics, -20° to +65°C, IP67
$261.00$261.00
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
