Carlo Gavazzi
PH18CND10PASA
Photoelectric Diffuse Reflective Sensor, M18 Square Housing, 1000mm (1m) Range, Red Modulated Light 625nm, 10-30VDC Power Supply, PNP, NO/NC, 2m Grey PVC Cable, IP67/IP69K
$78.58$78.58 -
$93.17$93.17 -
$169.05$169.05 -
$100.38$100.38 -
$104.61$104.61 -
$110.94$110.94 -
IDEC
SA1E-XN1C
Photoelectric, NPN, Light ON, Transparent, up to 2m sensing, M8 connector (Needs Cable), NCNR
$116.22$116.22 -
$100.38$100.38 -
$104.61$104.61 -
$110.94$110.94 -

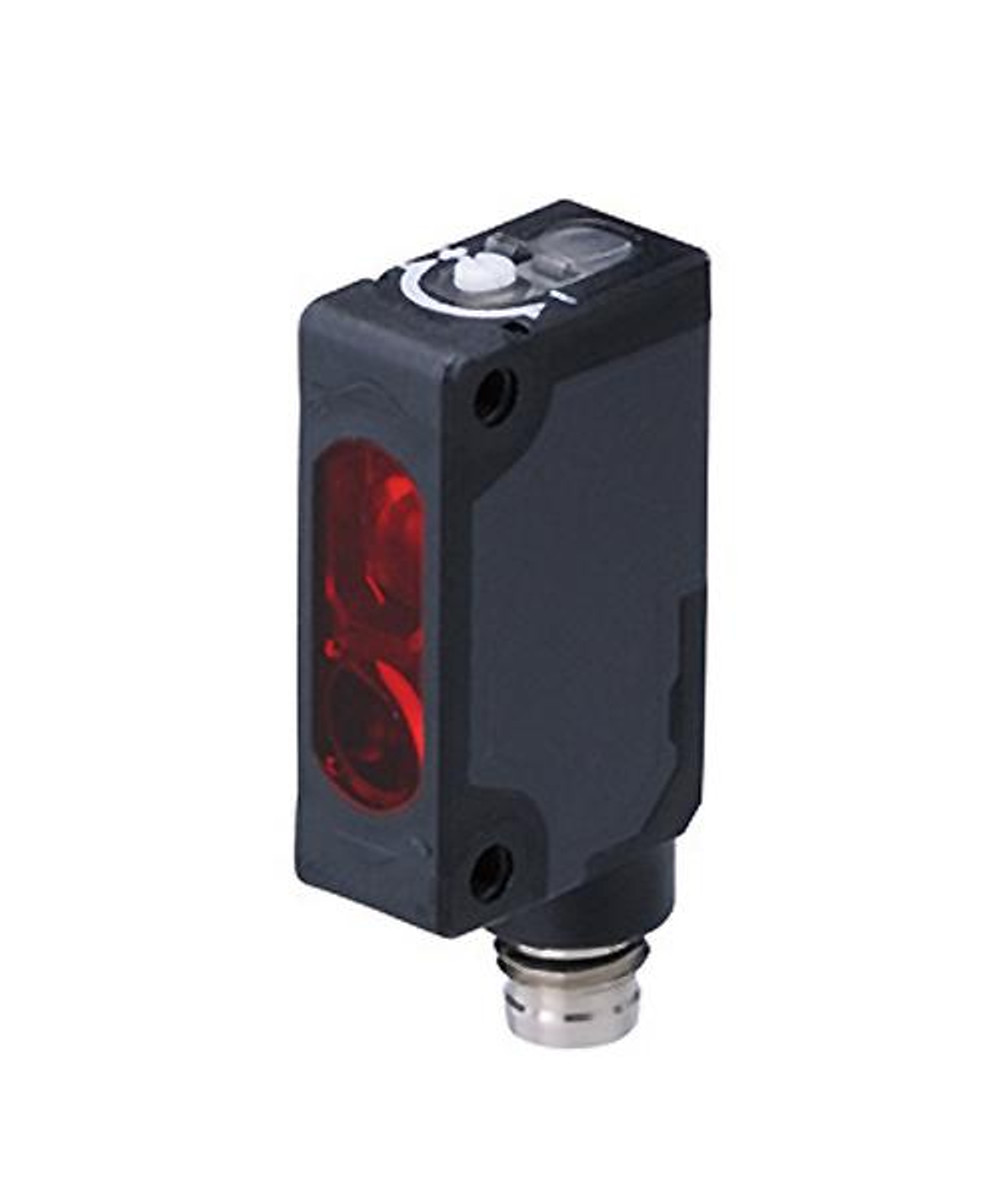

IDEC
SA1E-XN2C
Photoelectric, NPN, Light ON, Transparent, up to 2m sensing, M8 connector (Needs Cable), NCNR
$116.22$116.22 -
$100.38$100.38
Photoelectric sensors detect the distance, absence or presence of an object. These sensors are great for sensing long distances and detecting most materials.
How Does a Photoelectric Sensor Work?
Generally a photoelectric sensor consists of the following:
- Transmitter - emits the light beam
- Receiver - detects the light beam and converts it to an electrical signal
Photoelectric sensors detect changes in the light beam caused by the presence/absence, movement or properties of an object.
Types of Photoelectric Sensors:
- Through-Beam (Thru-Beam)
- Transmitter and receiver are two separate units that are directly opposite of each other. The sensor detects when an objects breaks the light beam
- Great for long distance detection
- Ideal for conveyors, counting or monitoring door openings
- Retroreflective (Reflective Mode)
- Transmitter and receiver are in one housing; light beam is reflected back by a reflector. Detection is triggered when an object breaks the beam.
- Medium range detection and easier to install than a through beam
- Ideal for package detection and pallet positioning
- Diffuse (Proximity Mode)
- The transmitter and receiver in one housing; the sensor detects light reflected directly off the target object (no reflector needed)
- Best for short range applications
- Ideal for detecting objects on assembly lines, verifying presence or checking fill level
- Specialized Types:
- Background Suppression: Can ignore objects beyond a set distance, focuses close range
- Color or Contrast Sensors: Detects specific colors or contrast differences
- Distance Measuring Sensors: Mesaure the distance to an object
Categories Related to Photoelectric Sensors:
- Stack lights - signal towers visually communicate the data or alerts that the photoelectric sensors are generating
- Smart relays - photoelectric sensors provide input signals which can process the data and control outputs
- Pushbuttons and estops - if your sensor detects a fault, an operator can use a pushbutton to reset the system
- HMIs - HMIs can dispay the data from the photoelectric sensor which allows you to monitor processes
